JST B2P-VH (LF)(SN) 2-Pin Strip 3.96mm Spacing Vibration-Proof Locking

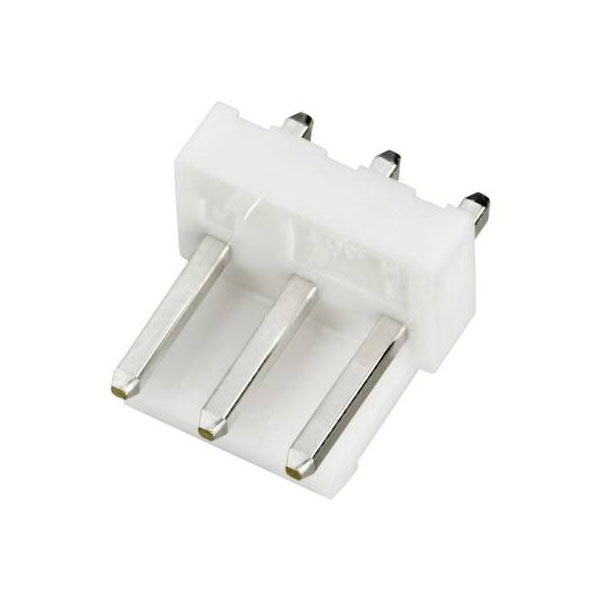

Image Representative of Range

JST B2P-VH (LF)(SN) 2-Pin Strip 3.96mm Spacing Vibration-Proof Locking

JST
Order Code:

04-4861

Brand: JST MPN: B2P-VH (LF)(SN) EAN-13: 2050000917875
Qty Unit Price (Ex VAT)
25+ £0.169
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
853 in stock, despatched in 4 working days

JST manufactures the B2P-VH (LF)(SN) pin strip connector featuring 2 pins with a contact spacing of 3.96 mm. Its compact size of 7.86x14.6x8.5 mm makes it suitable for PCB applications where space is limited. Typically used in electronic components and connectors, it ensures reliable connections on circuit boards.
Type Pin strip (standard)
Number of Positions 2
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Colour Ecru
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, straight
Contact Material Phosphor bronze
Cross Section 3.96mm
Dimensions (L x W x H) 7.86 x 14.6 x 8.5 mm
Height 8.5mm
Industrial packaging No
Insulation Material Polyamide
Length 7.86mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Nominal Current 10A
Nominal Voltage 250V AC
Pin Ø 1.14mm
Pin shape Square
Pins per row 2
Series VH
Width 14.6mm
