JST B06B-XASK-1 (LF)(SN) XA Connector 6 Pins 2.50mm Vibration-Proof Lockable

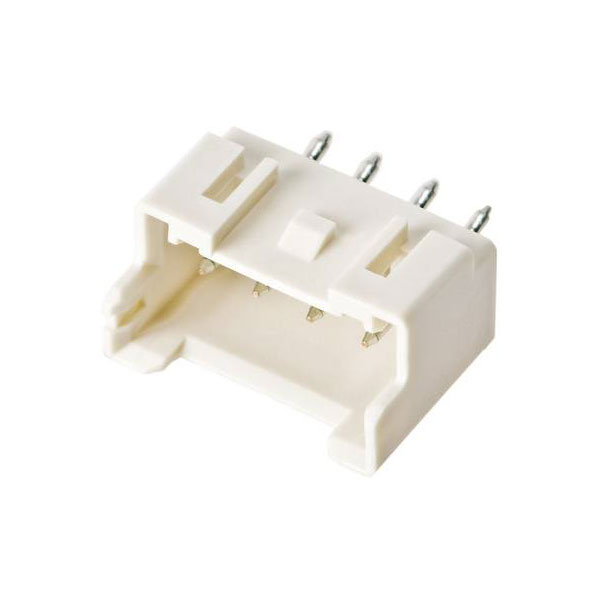

Image Representative of Range

JST B06B-XASK-1 (LF)(SN) XA Connector 6 Pins 2.50mm Vibration-Proof Lockable

JST
Order Code:

04-4841

Brand: JST MPN: B06B-XASK-1 (LF)(SN) EAN-13: 2050001028655
Qty Unit Price (Ex VAT)
10+ £0.430
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
226 in stock, despatched in 4 working days

The JST pin strip, model B06B-XASK-1 (LF)(SN), features a total of six pins with a contact spacing of 2.50 mm. Manufactured by JST, it facilitates reliable electrical connections. This component is typically used in electronic assemblies for secure interconnections.
Type Pin strip (standard)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, straight
Contact Material Phosphor bronze
Cross Section 0.08 - 0.5mm²
CS 2.50mm
Dim (L x W x H) 17.5 x 6.4 x 8.8 mm
Factory colour Ecru
Height 8.8mm
Industrial packaging No
Insulation Material Polyamide
Length 17.5mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Straight connector pin strip
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 250V AC
Pin Ø 0.6mm
Pin shape Circular
Pins 6
Pins per row 6
Series XA
Total number of pins 6
Width 6.4mm
