JST B03P-VL VL Series Pin Strip Lockable 3 Pins 6.20mm Spacing

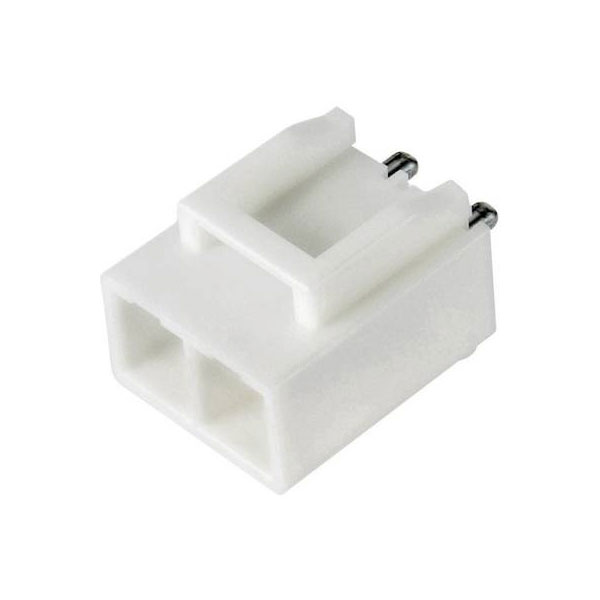

Image Representative of Range

JST B03P-VL VL Series Pin Strip Lockable 3 Pins 6.20mm Spacing

JST
Order Code:

04-4838

Brand: JST MPN: B03P-VL EAN-13: 2050001028778
Qty Unit Price (Ex VAT)
3+ £1.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
45 in stock, despatched in 4 working days

The JST Built-in pin strip (precision) features three pins with a contact spacing of 6.20 mm. Manufactured by JST, this component is identified by part number B03P-VL. It is typically used in circuit board connections for precision electronic applications.
Type Built-in pin strip (precision)
Number of Rows 1
Board contact surface Tin plated
Case Material Polyamide
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Connector Type Pin strip, straight
Contact Material Phosphor bronze
Cross Section 0.5 - 3.5mm²
CS 6.20mm
Dim (L x W x H) 19.6 x 11.2 x 16.4 mm
Factory colour Ecru
Height 16.4mm
Industrial packaging No
Insulation Material Polyamide
Length 19.6mm
Material (details) PA 66, UL94V-0
Misc Attribute 1 Straight connector pin strip
Nominal Current 20A
Nominal current - rounded value 20A
Nominal current (details) 20A
Nominal voltage (details) 600V AC
Pin Ø 1.8mm
Pins 3
Pins per row 3
Series VL
Total number of pins 3
Width 11.2mm
