JST 800375 XH Socket Housing 12 Pins 2.50 mm Pre-Tinned Click Lock

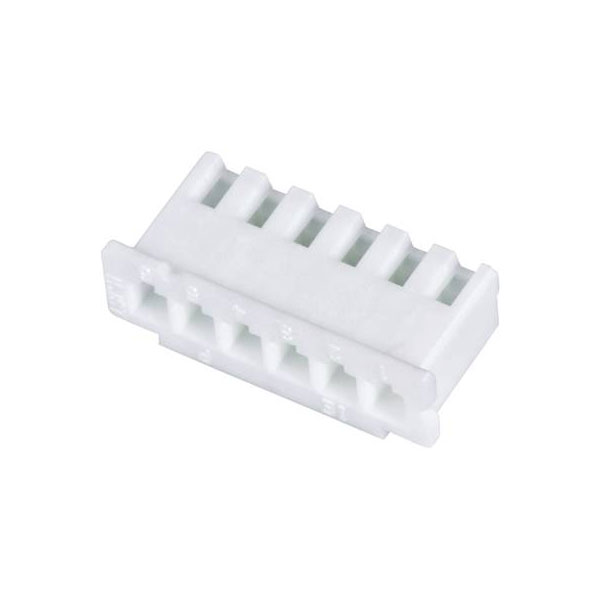

Image Representative of Range

JST 800375 XH Socket Housing 12 Pins 2.50 mm Pre-Tinned Click Lock

JST
Order Code:

04-4821

Brand: JST MPN: 800375 EAN-13: 2050000918735
Qty Unit Price (Ex VAT)
20+ £0.217
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
48 in stock, despatched in 4 working days

The JST socket housing cable XH features 12 pins and a contact spacing of 2.50 mm. Measuring 32.3x5.7x7.75 mm, it is ideal for use in components, connectors, and general PCB connections. Manufactured by J.S.T., this housing is commonly utilised in electronic assembly applications.
No. of Rows 1
No. of Ways 12
Contact Finish Copper alloy
Case Material Polyamide
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Cross Section 0.08 -0.33mm²
CS 2.50mm
Dim (L x W x H) 32.3 x 5.75 x 10.4 mm
Factory colour Ecru
Height 10.4mm
Industrial packaging No
Insulation Material Polyamide
Length 32.3mm
Material (details) PA 66 UL94V-0
Misc Attribute 1 Connector pin strip, straight
Misc Attribute 2 XHP-12
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 250V AC
Pins 12
Pins per row 12
Series XH
Type Socket housing cable
Width 5.75mm
