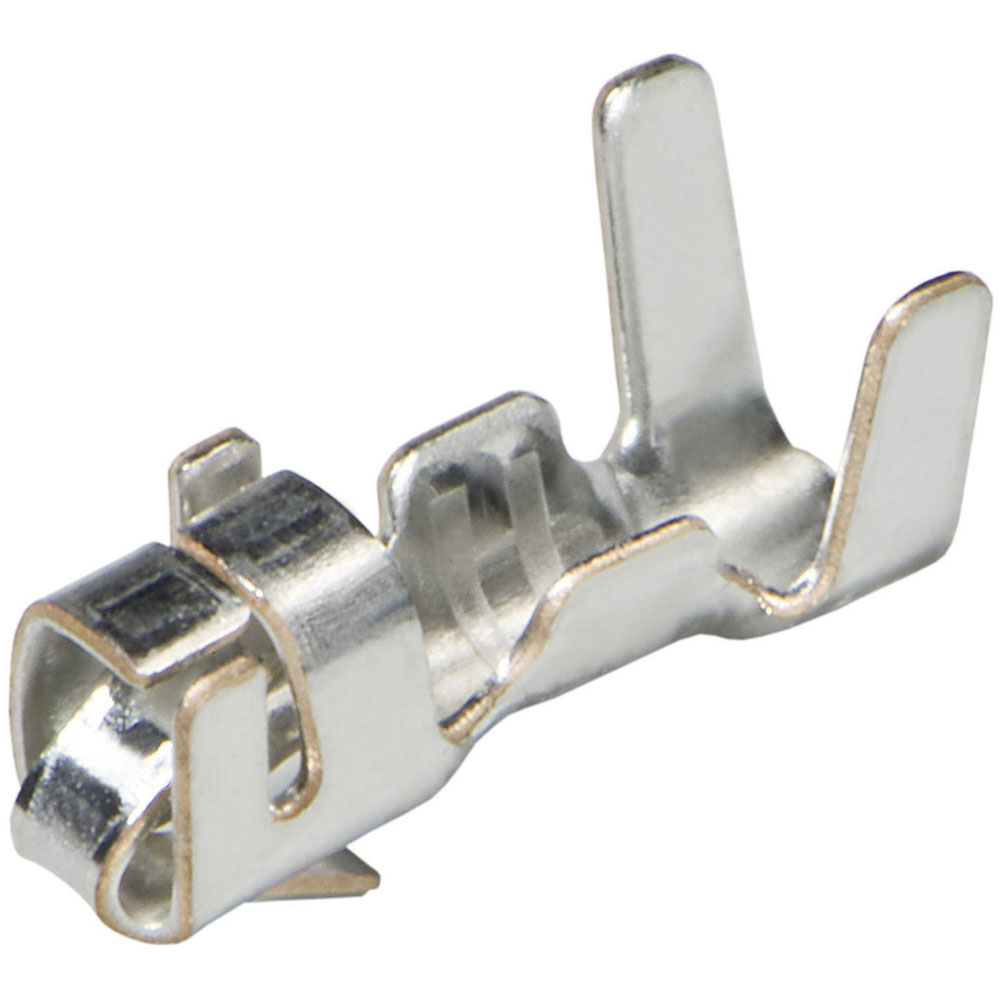

JST 800138 XH Crimp Contact 1 Pin Click Connection Pre-tinned

JST
Order Code:

04-4809

Brand: JST MPN: 800138 EAN-13: 2050000918742
Qty Unit Price (Ex VAT)
100+ £0.062
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
17,212 in stock, despatched in 4 working days

JST manufactures the crimp contact XH with a total of 1 pin, identified by part number 800138. It features dimensions of 6.5x1.95x2.4mm and accommodates wire sizes from 0.08 to 0.33 sq mm. This component is commonly used in PCB connectors and general electrical connections.
Type Crimp contact
AWG (min.) 28
AWG max. 22
Connection Crimp
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, straight
Contact Material Phosphor bronze
Cross Section 0.08 -0.33mm²
Dim (L x W x H) 6.5 x 1.95 x 2.4 mm
Factory colour Silver
Height 2.4mm
Industrial packaging No
Length 6.5mm
Material (details) PA 66 UL94V-0
max. cross section 0.33mm²
Min. cross section 0.08mm²
Misc Attribute 1 BXH-001T-P0.6
Misc Attribute 2 Crimp contact
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 250V AC
Number of Rows 1
Pins per row 1
Series XH
Total number of pins 1
Width 1.95mm
