JST 03T-JWPF-VSLE-S JWPF Pin Housing IP67 Waterproof 3-Pin Lockable

JST
Standard range
Order Code:

04-4803

Brand: JST MPN: 03T-JWPF-VSLE-S
Qty Unit Price (Ex VAT)
1+ £1.19
125+ £1.01
500+ £0.960
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
266 in stock, despatched in 4 working days

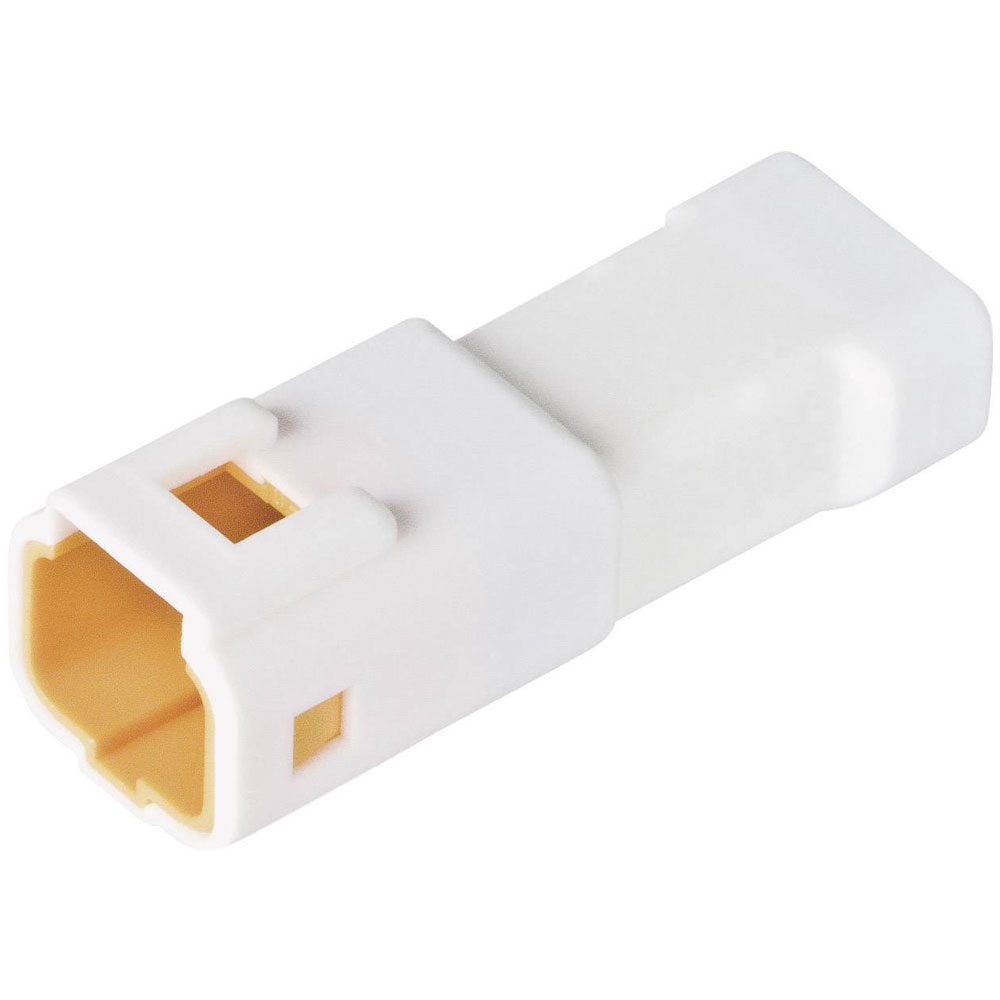

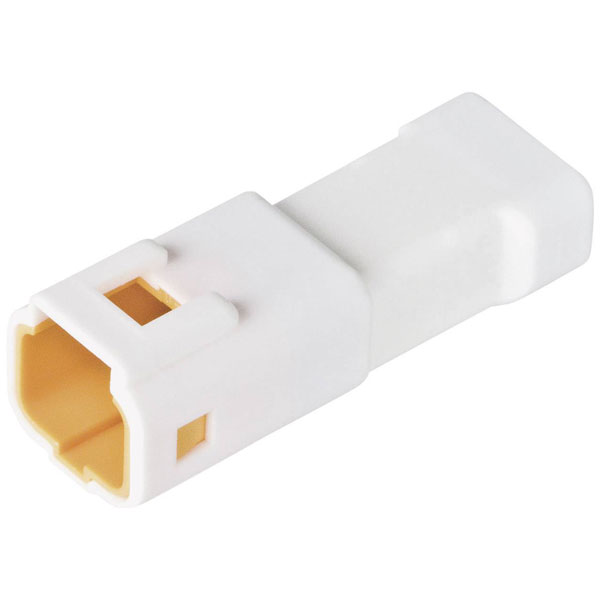

The JST 03T-JWPF-VSLE-S is a pin housing cable with a total of three pins. It is manufactured by JST and is typically used in electronic and electrical applications for connecting circuit components securely. This component is known for its reliability and compact design.
No. of rows 1
Case material Polyamide
Connection Crimp
Connector system wire-to-board
Connector type Plug, straight
Cross section 0.13 - 0.33mm²
Dim (L x W x H) 25.8 x 9 x 8.1 mm
Factory colour Ecru
Height 8.1mm
Industrial packaging No
Insulation material Polyamide
IP rating IP67
Length 25.8mm
Manufacturer part # 03T-JWPF-VSLE-S
Material (details) PA 66 UL94V-0
max. cross section 0.33mm²
Min. cross section 0.13mm²
Misc Attribute 1 Housing for pin contacts
Misc Attribute 2 03T-JWPF-VSLE-S
Nominal current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal voltage (details) 100V AC
Pins 3
Pins per row 3
RoHS-compliant Yes
Series JWPF
Total number of pins 3
Type Pin housing cable
Width 9mm
