Joy-It Rb-Moto3 Motopi

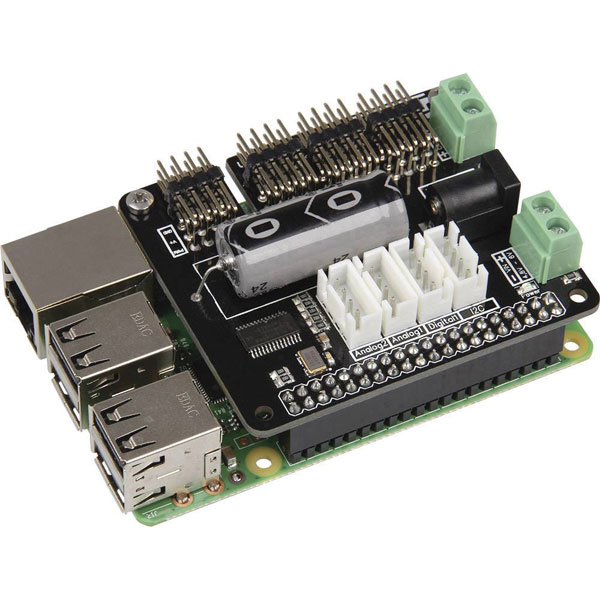

This motor control is an expansion board for the control and use of up to 16 PWM-controlled 5V-stepper motors. The board can also be supplied with a voltage of 4.8V - 6V, so that an optimal supply of the motors is always guaranteed and thus even larger projects can be supplied with sufficient power. Through the simple plug-in to the board, and its super-slim design, fits Raspberry Pi and the RB-Moto 3 Expansion Board in many cases. The additional voltage supply and the integrated analogue-digital converter, offer new, more compact possibilities. An additional power supply, per motor, there is no need to now, since all connections (voltage, earth, control line) are directly connected to the board. The control and programming of the motors can, as usual, still comfortably over the Raspberry Pi can be controlled.

Type	Controller
Depth	56mm
Height	24mm
Software included	no
Width	65mm
