Joy-it LCD 128x64 high-contrast display screen

Joy-It
Standard range
Order Code:

00-0709

Brand: Joy-It MPN: LCD128x64SPI EAN-13: 4250236821993
Qty Unit Price (Ex VAT)
1+ £8.02
5+ £7.86
10+ £7.78
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
31 in stock, despatched in 4 working days

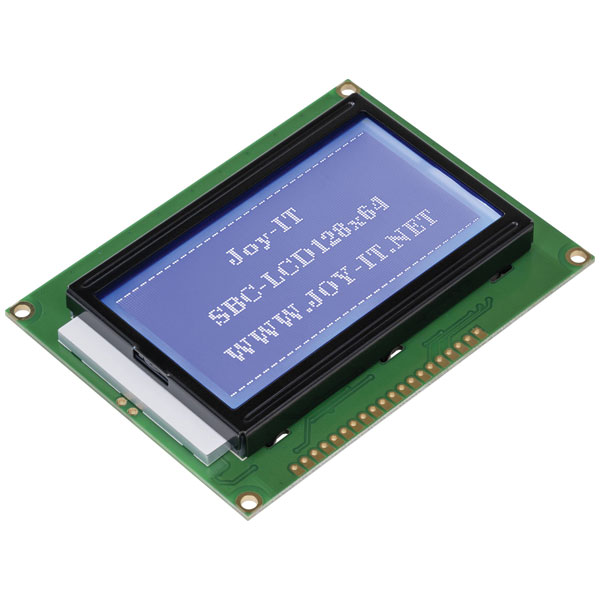

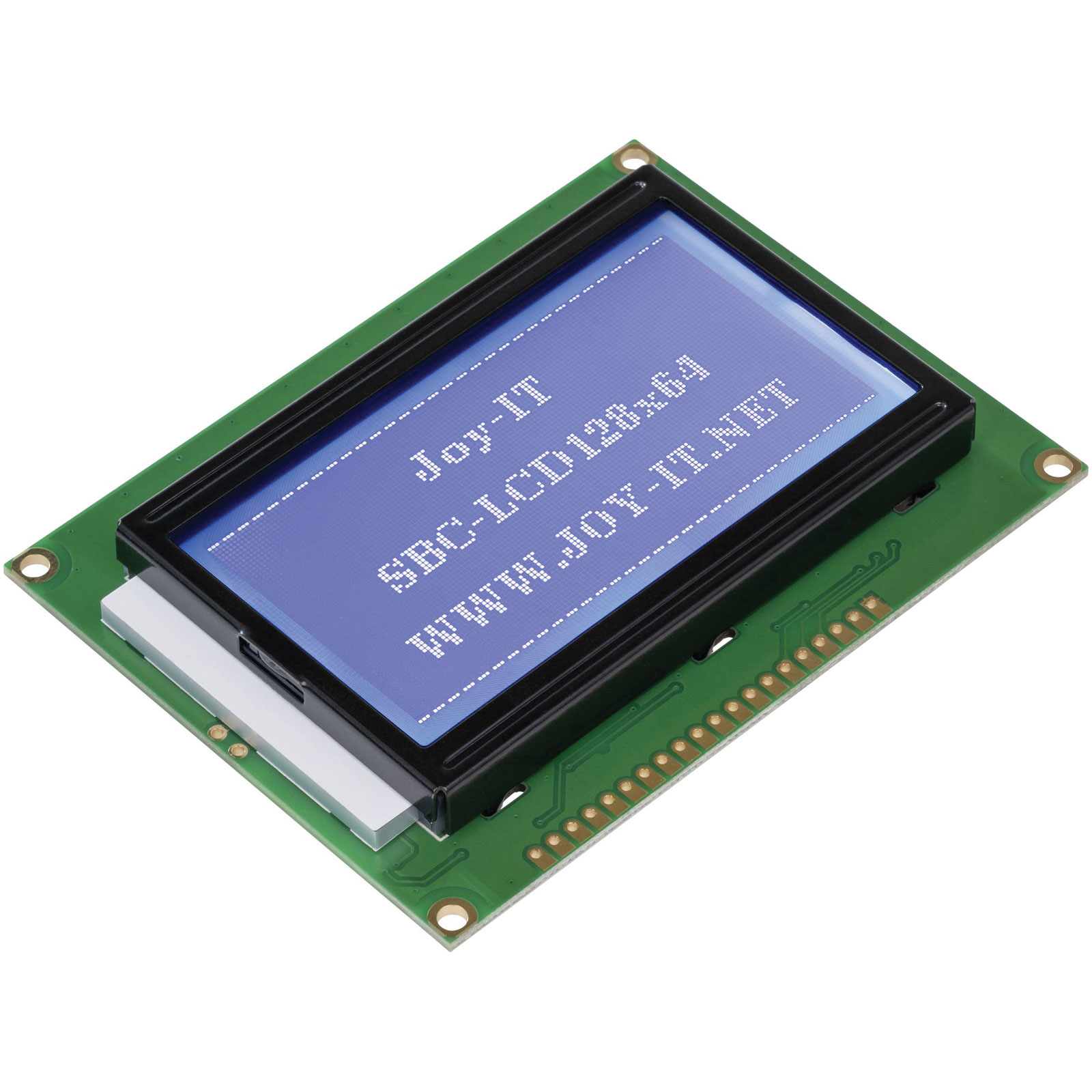

This 128 x 64 graphics LCD display is versatile applicable and can be controlled with 8 pin parallel as well as serially via SPI. Its large high-contrast display is suitable for many different applications. The contrast can be adjusted via a potentiometer on the rear side. In the enclosed data sheet you will find not only all the relevant data but also a technical drawing with all dimensions, which are necessary for an integrated use.
Background colour Blue
Controller type ST7920, SPI
Depth 12mm
Dim (W x H x D) 93 x 70 x 12 mm
Display resolution 128 x 64 Pixel
Font colour White
Height 70mm
LED features PCB-mounted
Max. current consumption 65mA
Max. operating voltage 5V
Type LCD
Width 93mm
