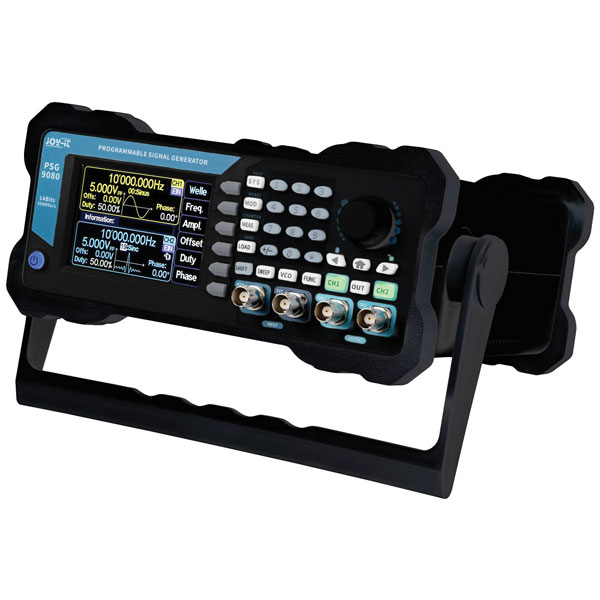

Joy-it JT-PSG9080-B programmable 2-ch signal generator 1nHz-80MHz

The programmable signal generator PSG9080 can generate many different waveforms, including sine, square, triangle, pulse and user-defined waves. The signal generator has a generous frequency range that ranges from 1nHz to 80MHz and a sampling rate of 300 MSa/s. The high-quality finish housing offers non-slip feet to enable pleasant working. Different signal-modulation procedures, such as frequency modulation, phase modulation, amplitude modulation, pulse-width modulation, frequency scanning, are no longer a challenge with this device. The integrated measurement function also enables the frequency, period and duty cycle of external signals to be measured and displayed on screen in real time. The signal generator can be used very easily with its intuitive key layout and the high-resolution 3.5-inch color LCD. Different settings can be saved in groups and thus called up again very quickly. Moreover, the menu can be displayed in the languages German, English and French.

Type	Generator
Frequency Range	0 MHz - 80 Hz
Number of Channels	2-channel
Calibrated to	Manufacturer's standards (no certificate)
Dim	(W x H) 219 mm x 160 mm
Display	LCD
Distortion factor (sine)	0,9%
Frequency range (sine)	80MHz
Frequency range square wave	30MHz
Frequency range triangle	50MHz
Height	160mm
Max. frequency	80Hz
Min. frequency	0MHz
Voltage Supply	230 V/AC
Width	219mm
