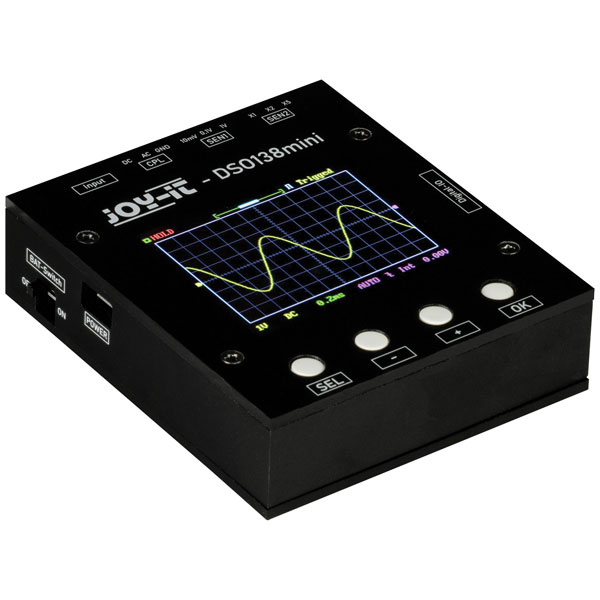

Joy-it DSO-138-Mini Digital Oscilloscope, 200 kHz, USB-powered, 1-channel

Joy-It
Order Code:

00-0645

Brand: Joy-It MPN: DSO-138-Mini EAN-13: 4250236820545
Qty Unit Price (Ex VAT)
1+ £40.10
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
98 available to back orderBack-order availability date - 31/01/2026

The DSO138Mini is an optimized version of the popular DSO-138 oscilloscope and offers several advantages compared to its predecessor: Operation via USB and possible with a 3.7V lithium-ion battery (battery not included in delivery), simplified power supply circuit, improved mobile use through significantly smaller housing size, external trigger input, which accepts TTL and LVTTL signals as source and serial output of waveform data.
Bandwidth 200kHz
Type Oscilloscope
Screen Size 320 x 240 p
Calibrated to Manufacturer's standards (no certificate)
Channel memory depth 1 KP
Channel sample rate 1 MSa/s
Dim (L x W x H) 75 x 85 x 15 mm
Height 15mm
Input coupling AC/DC/GND
Input Impedance 1 MΩ
Input Voltage 50V
Interfaces Micro USB
Length 75mm
Number of Analogue Inputs 1
Power supply (details) 3.5 to 6V DC
Resolution 12Bit
Time base 500 s/div - 10us/div
Width 85mm
