Jauch Quartz 247572 LP523450JU Rechargeable LiPo Battery 3.7V 950mAh

Jauch Quartz
Order Code:

09-5285

Brand: Jauch Quartz MPN: 247572 EAN-13: 4260079083182
Qty Unit Price (Ex VAT)
1+ £10.33
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
333 available to back orderBack-order availability date - 19/12/2025

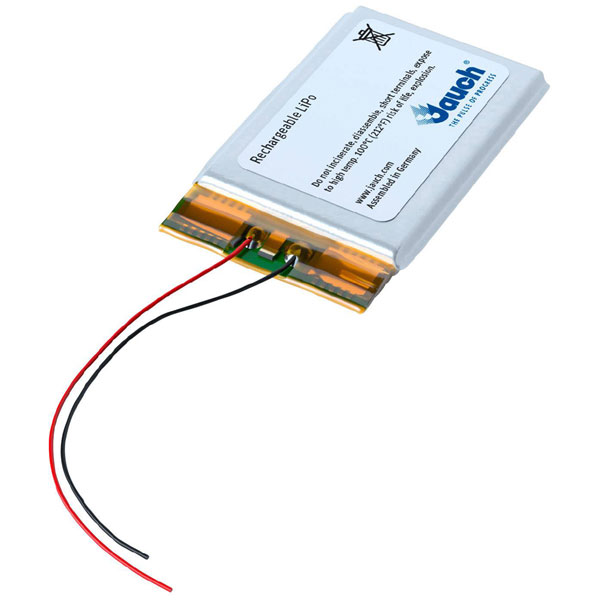

The Jauch Quartz LP523450JU is a non-standard, prismatic cable LiPo battery with a capacity of 950 mAh and a voltage of 3.7 V. Manufactured by Jauch Quartz, this rechargeable battery features a Soft cell design for industrial applications. It is typically used in built-in systems where a standard battery format is unsuitable.
Battery Size Prismatic
Capacity 950mAh
Chemistry LiPo
Voltage 3V
Continuous discharge 0.200A
Depth 52.5mm
Dim (W x H x D) 34.8 x 5.4 x 52.5 mm
Discharge current (max.) 2A
Height 5.4mm
Integrated surge protection Yes
Max. charge voltage 4.28V
Max. charging current 500mA
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute LP523450JU
Rechargeable Yes
Special-purpose battery features Cable
Type Non-standard battery (rechargeable)
Width 34.8mm
