Jauch Quartz 247502 LP102530JU LiPo Battery 3.7V 700mAh Prismatic Cable

Jauch Quartz
Order Code:

09-5274

Brand: Jauch Quartz MPN: 247502 EAN-13: 4260079083007
Qty Unit Price (Ex VAT)
1+ £10.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
123 available to back orderBack-order availability date - 19/12/2025

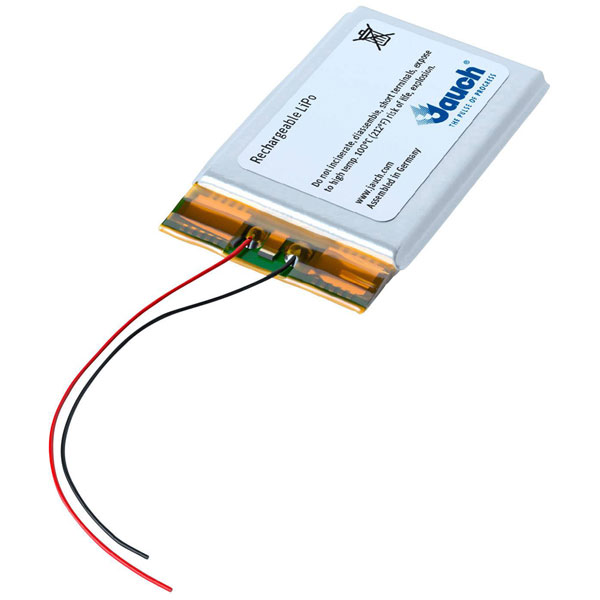

Jauch Quartz manufactures the LP102530JU, a non-standard rechargeable prismatic LiPo battery with a 3.7V output and 700mAh capacity. Featuring a soft cell, pouch cell design and integrated cable, it is suited for built-in applications. Typical uses include industrial devices requiring non-standard, reliable power sources.
Battery Size Prismatic
Capacity 700mAh
Chemistry LiPo
Voltage 3V
Continuous discharge 0.140A
Depth 32mm
Dim (W x H x D) 26 x 10 x 32 mm
Discharge current (max.) 1.4A
Height 10mm
Integrated surge protection Yes
Max. charge voltage 4.28V
Max. charging current 350mA
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute LP102530JU
Rechargeable Yes
Special-purpose battery features Cable
Type Non-standard battery (rechargeable)
Width 26mm
