Jauch 247568 Non-standard LiPo Battery Rechargeable 3.7V 1350mAh Prismatic

Jauch Quartz
Order Code:

09-5284

Brand: Jauch Quartz MPN: 247568 EAN-13: 4260079083168
Qty Unit Price (Ex VAT)
1+ £11.95
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
90 available to back orderBack-order availability date - 19/12/2025

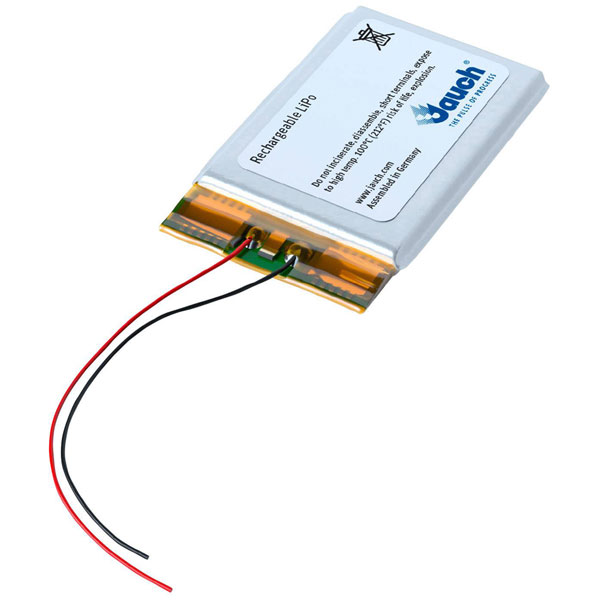

The Jauch Quartz 247568 is a non-standard rechargeable battery with a prismatic design and a capacity of 1350 mAh at 3.7 V, making it suitable for industrial applications. As a built-in battery, it features a Soft cell pouch construction for flexible integration into various devices. Typical uses include powering compact electronic equipment where bespoke power solutions are required.
Battery Size Prismatic
Capacity 1350mAh
Chemistry LiPo
Voltage 3V
Continuous discharge 0.270A
Depth 62mm
Dim (W x H x D) 38 x 5.4 x 62 mm
Discharge current (max.) 1.35A
Height 5.4mm
Integrated surge protection Yes
Max. charge voltage 4.28V
Max. charging current 675mA
Max. temperature +60°C
Min. temperature -20°C
Misc Attribute LP503759JU
Rechargeable Yes
Special-purpose battery features Cable
Type Non-standard battery (rechargeable)
Width 38mm
