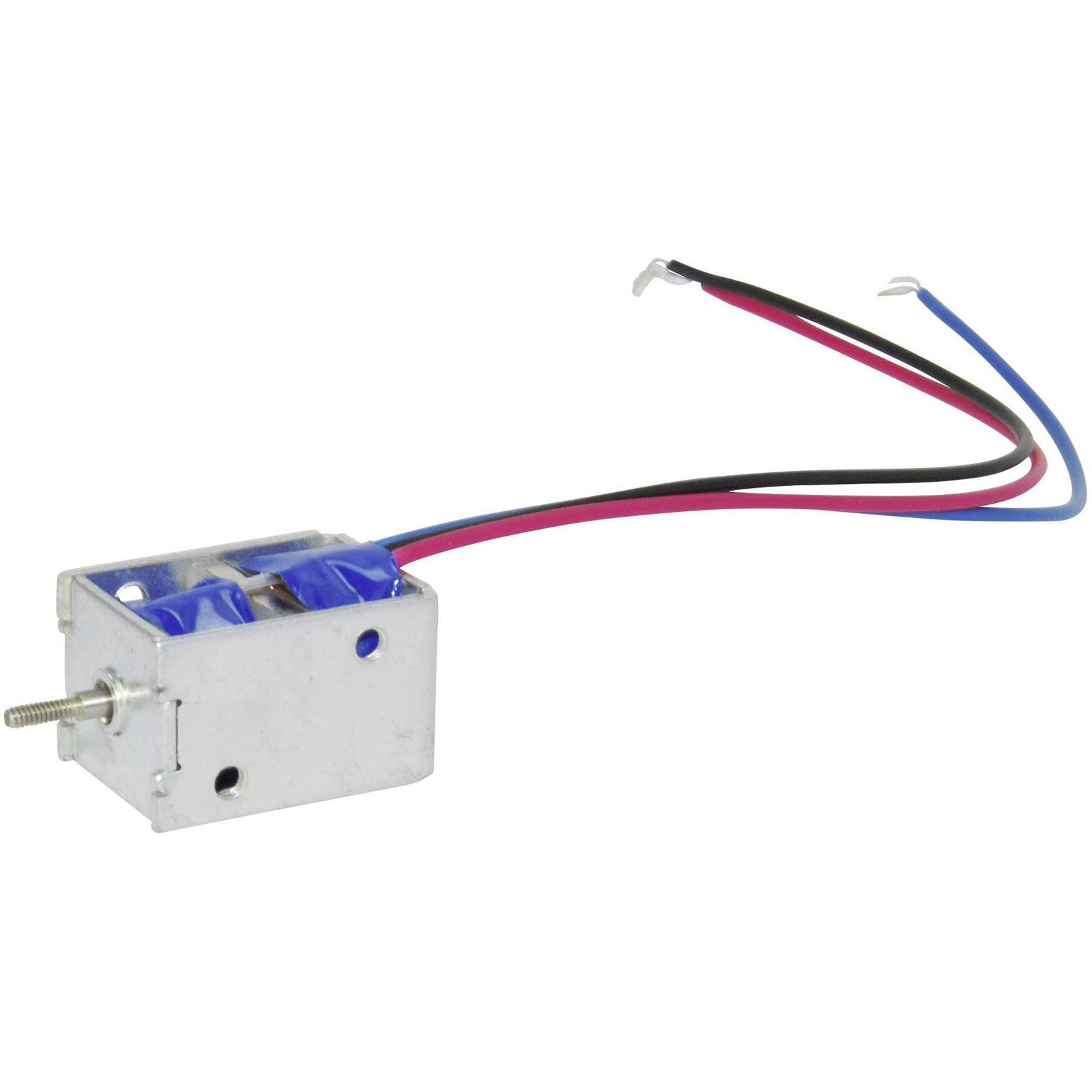

Intertec ITS-LX-1513-12VDC Solenoid Bidirectional 12V DC 24W Dual Position

Intertec
Standard range
Order Code:

09-5081

Brand: Intertec MPN: ITS-LX-1513-12VDC EAN-13: 4064161270074
Qty Unit Price (Ex VAT)
1+ £20.86
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
80 in stock, despatched in 4 working days

The Intertec ITS-LX-1513-12VDC solenoid is a bidirectional device operating at 12 V DC with a power rating of 24 W. This solenoid employs magnetism for movement, featuring a permanent magnet for efficient operation. It is typically used in motor applications where precise control and reliability are required.
Type Solenoid
Cable length 10.00cm
Connection Open end cable
Dim (L x W x H) 21 x 13 x 15 mm
Height 15mm
Holding force 6N
Length 21mm
Misc Attribute 1 ITS-LX-1513-12VDC
Misc Attribute 2 bidirectional
Nominal lift 6mm
Nominal voltage 12V DC
Power 24W
RoHS-compliant Yes
Temperature limit 130°C
Thread Size M1.6
Time interval setting 5%
Weight 65g
Width 13mm
