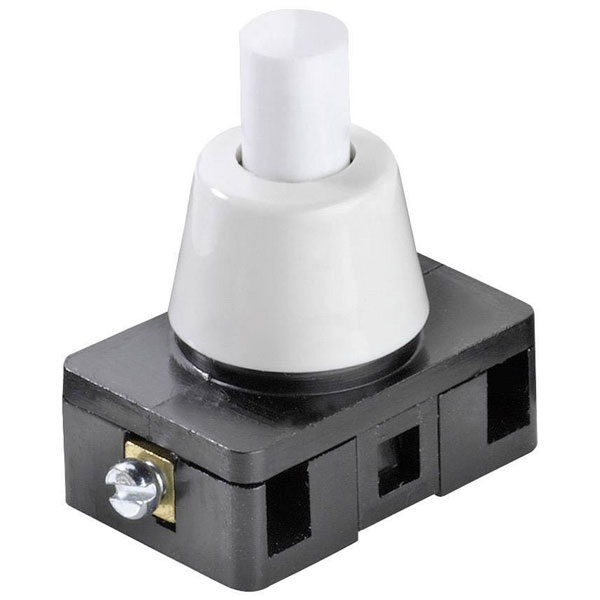

interBär 8001-007.01 Pushbutton Switch 250V AC 6A On/Off 27x16x29.7mm

interBär
Order Code:

09-4943

Brand: interBär MPN: 8001-007.01 EAN-13: 2050000221705
Qty Unit Price (Ex VAT)
1+ £4.89
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
139 in stock, despatched in 4 working days

The interBär 8001-007.01 is a pushbutton switch designed for 250 V AC and 6 A with a 1 x On/Off latch function. Its dimensions are 27 x 16 x 29.7 mm, making it suitable for compact applications. This switch is typically used in electrical panels and control boxes.
Type Pushbutton switch
Board thickness (max.) 10mm
Casing/button colour White
Contact Type 1 breaker
Dim (L x W x H) 27 x 16 x 29.7 mm
Functions latch
Height 29.7mm
Length 27mm
Lighting type None
Max. temperature +85°C
Misc Attribute 1 1-pole On/Off
Misc Attribute 3 8001
Recess diameter 11mm
Switch position 1 x On/Off
Switch/button features Protruding
Switching Capacity 6 (2) A/250V AC
Switching Current 6 (2)A
Switching current (inductive) 2A
Switching current (max.) 6A
Switching Voltage 250V AC
Temperature Range max. 85°C
Width 16mm
