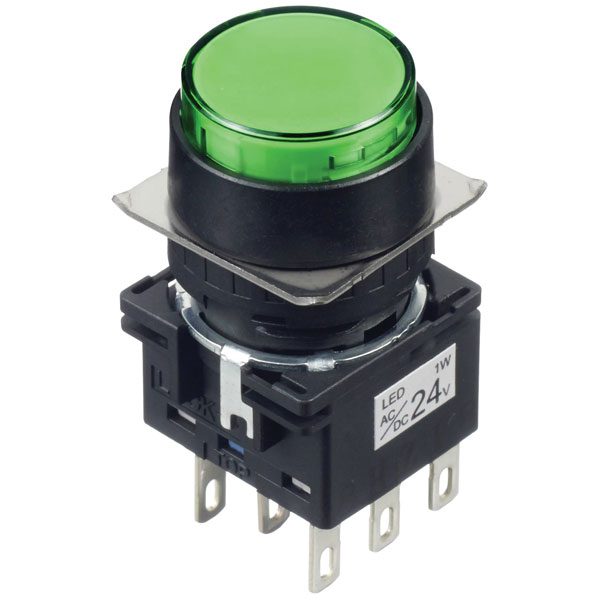

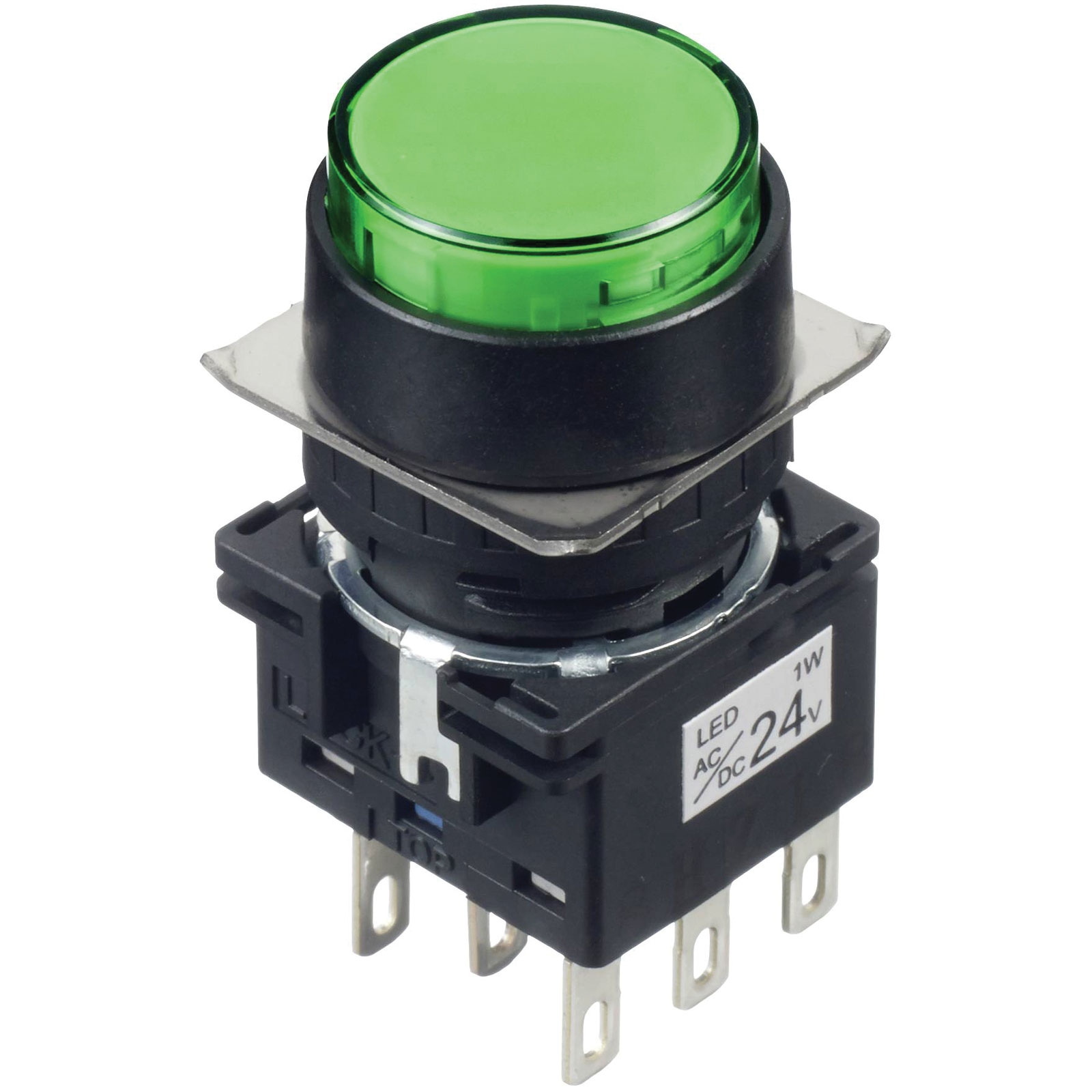

IDEC LB6L-M1T64G LB6L Illuminated Push Button 250V 5A Ø22mm IP65

Image Representative of Range

IDEC LB6L-M1T64G LB6L Illuminated Push Button 250V 5A Ø22mm IP65

IDEC
Standard range
Order Code:

04-4611

Brand: IDEC MPN: LB6L-M1T64G
Qty Unit Price (Ex VAT)
1+ £14.37
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
17 in stock, despatched in 4 working days

The Idec LB6L-M1T64G is an illuminated push button switch designed for 250 V, 125 V, and 30 V applications, with a current rating of 5 A. Featuring a momentary 2 x Off/(On) configuration, it fits a 22 mm panel cutout and offers IP65 protection. This switch is suitable for industrial control panels and equipment requiring reliable momentary operation and visual indication.
Type Illuminated push button
(Ø) 22mm
Casing/button colour Green
Contact type 2 change-overs
Dim (Ø) 22 mm
Functions momentary
IP rating IP65
Lighting type LED
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LB6L-M1T64G
Recess diameter 18.2mm
RoHS-compliant Yes
Switch position 2 x Off/(On)
Switching current (max.) 5A
