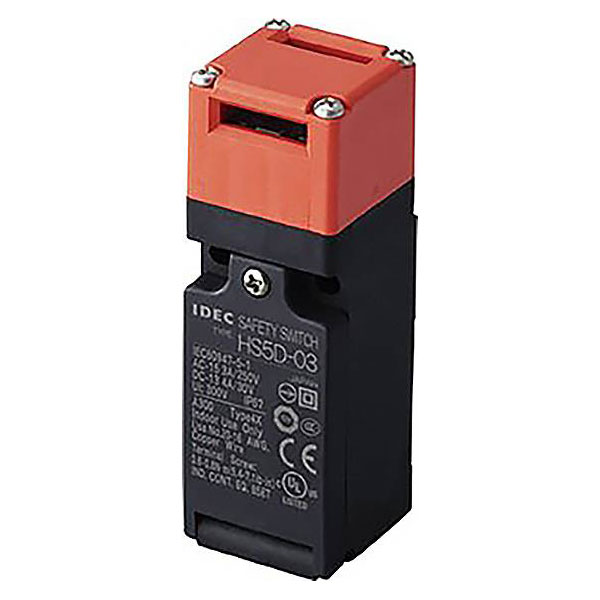

Idec HS5D-11RN HS5D Series Safety button 10 A IP67 single unit Position Switch

IDEC HS5D-11RN, known alternatively as 3395431, is a robust component within the HS5D Series that offers exceptional safety functionality. This product features an IP67-rated enclosure, ensuring protection against the ingress of dust and water, making it suitable for demanding industrial environments. Its capability to handle currents up to 10 A makes it ideal for safety interlocking in machinery applications, ensuring the switch is highly reliable for safety circuits in manufacturing plants. Widely utilised in automation and control systems, this single-unit position switch is engineered to maintain operational integrity even in harsh conditions, thereby enhancing the safety and efficiency of industrial processes.

Type	Safety button
Actuating Force	50N
Colour	Black
Content	1
Current Rating	10A
Durability	At least 1 000 000 inserts
Electrical lifespan	At least 100 000 inserts
IP Rating	IP67
Material	Plastic
Max. temperature	70°C
Maximum Temperature	70°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
Weight	80g
Width	30mm
