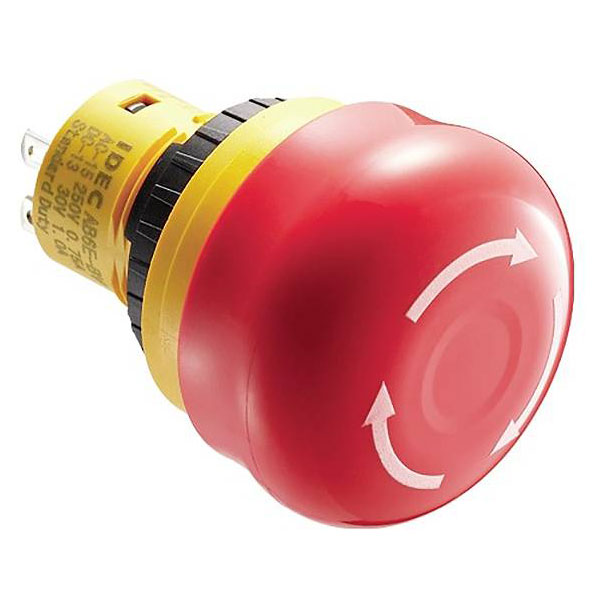

Idec AB6E-3BV01PTRM AB6E Series kill switch 250V 5A IP54 emergency power off

IDEC AB6E-3BV01PTRM is a reliable and robust emergency power-off switch designed to provide critical safety control in electrical systems. This product, also referred to by its alternate description number 3395399, is part of the AB6E Series and is engineered to handle a voltage rating of 250 volts and a current rating of 5 amperes. The switch features an IP54 protection rating, making it suitable for use in environments where it may be exposed to dust and splashing water. Typical applications of this kill switch include industrial machinery, manufacturing equipment, and other automated systems where an emergency stop function is necessary for safety compliance. IDEC's commitment to high-quality safety components is evident in the construction and functionality of the AB6E-3BV01PTRM, designed to provide reliable performance in demanding industrial settings.

Type	Kill switch
IP Rating	IP54
Actuating Force	40N
Button Diameter	30mm
Colour	Yellow, Red
Content	1
Current Rating	5A
Diameter	30mm
Dimensions	(Ø x L) 30 mm x 44.5 mm
Durability	At least 100 000 inserts
Electrical lifespan	At least 100 000 inserts
Length	44.5mm
Max. temperature	60°C
Maximum Temperature	60°C
Min. temperature	-25°C
Minimum Operating Temperature	-25°C
Nominal Voltage	250V
Recess Diameter	16.2mm
Weight	13g
