Hylec DN13E Grey General Purpose ABS Enclosure 100x125x125mm Grey Lid

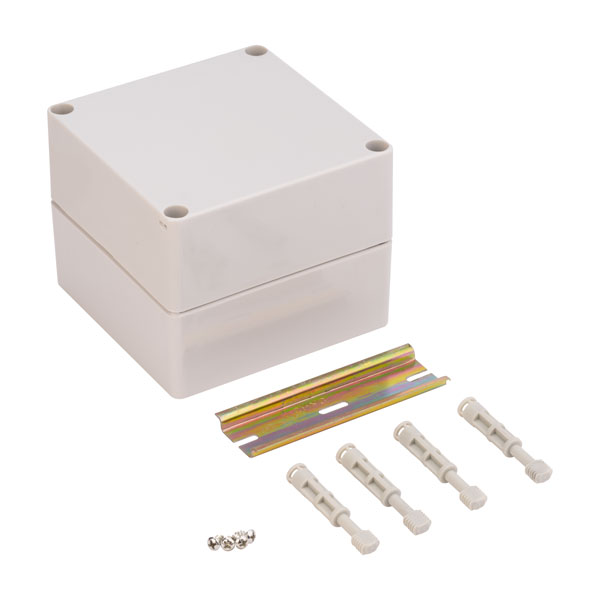

This versatile Hylec DN13E junction box is supplied complete with a DIN rail mounting strip as well as offering many mounting options for circuit boards to be positioned from side-to-side, corner-to-corner or mounted on the pillars moulded into the base.

• Size 100 x 125 x 125mm
• Grey lid
• Supplied complete with 35mm DIN rail section & mounting screws, etc.
• Multiple slots for vertical PCB mounting
• Captive plastic screws in lid
• Made from flame retardant ABS to UL94-HB
• Sealed to IP66
• Robust to IK08
• Temperature range -10 to +80°C
• Hylec type DN13E

Colour	Grey
Enclosure Height	100mm
Enclosure Length	125mm
Enclosure Width	125mm
External Features	Captive screws in lid
Internal Features	DIN rail, slots, pillars
Material	ABS
