HuiYuan 3034R1C-CSC-C LED Wired Red Circular 3mm 3700mcd 25° 20mA 2.1V

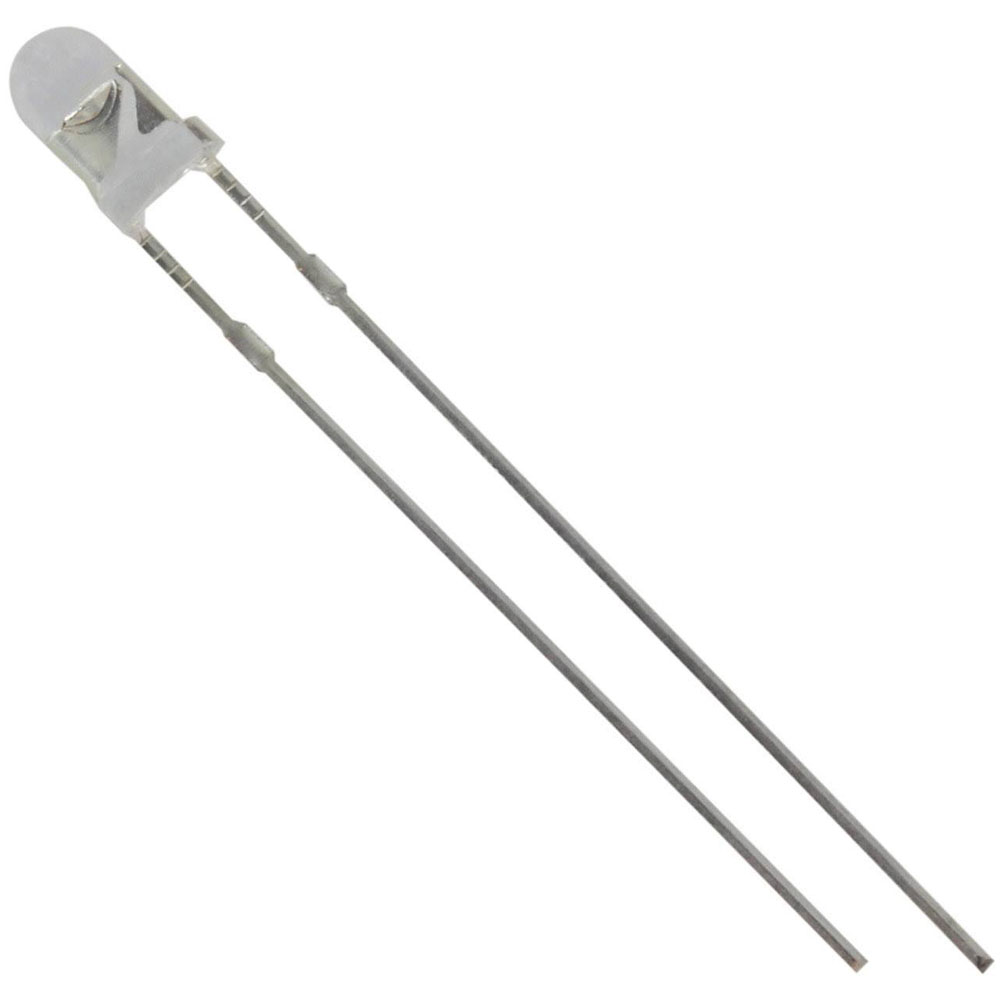

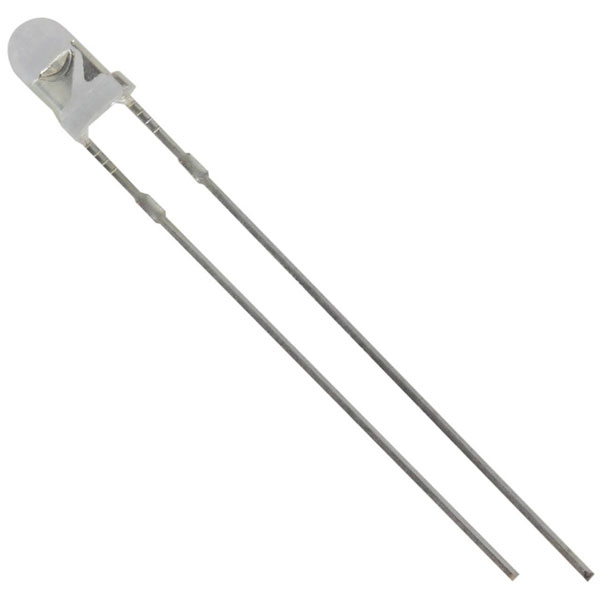

HuiYuan 3034R1C-CSC-C is a precision-engineered LED component designed to deliver focused red illumination. With a diameter of 3 mm, this LED provides a luminous intensity of 3700 millicandela, featuring a narrow viewing angle of 25 degrees. It operates efficiently at a forward current of 20 mA and a voltage of 2.1 volts, making it suitable for a range of demanding applications. Typically employed in indicators, backlighting, and small-scale electronic projects, it offers reliable and consistent semiconductor lighting performance. This component is particularly well-suited for applications that require single wavelength light emission.

LED Colour	Red
Dominant Wavelength	628nm
Forward Current	20mA
Lens Type	Circular
Luminous Intensity	3700mcd
Forward Voltage	2.1V
Viewing Angle	25°
Casing	3mm
Content	1
Max. temperature	80°C
Maximum Temperature	80°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
Product Type	Water clear
Type	THT
