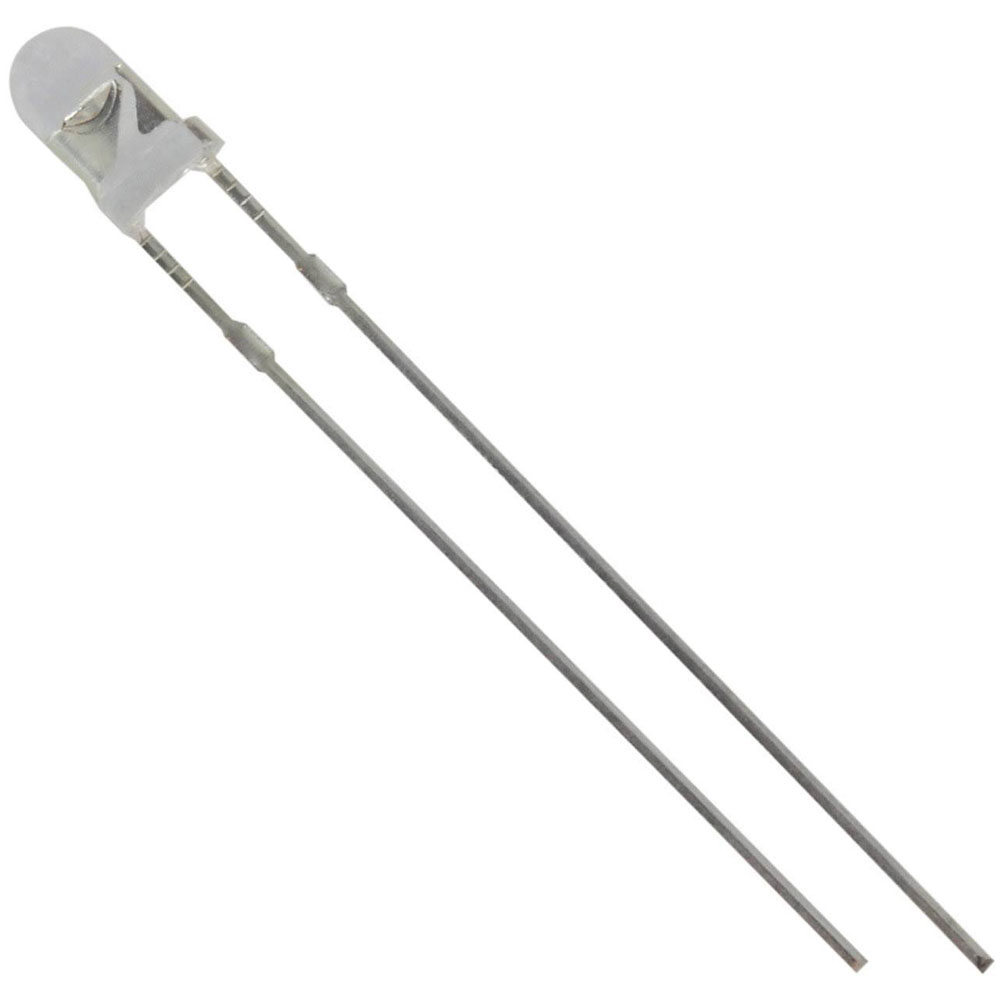

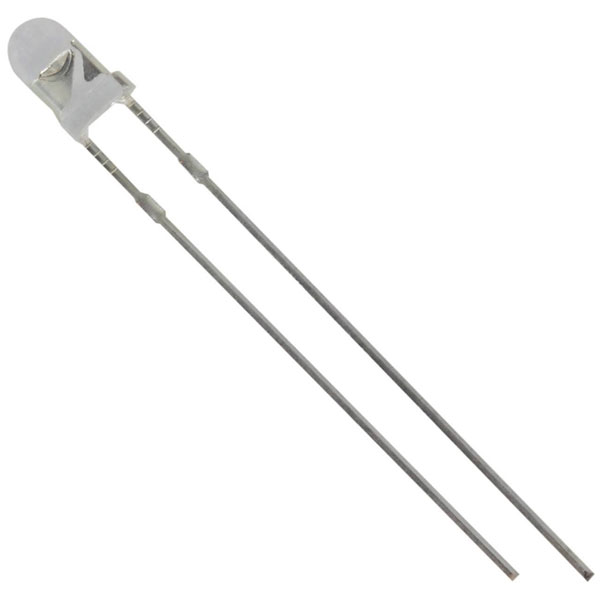

HuiYuan 3004R1C-DSA-B LED wired Red Circular 3 mm 800 mcd 40° 20 mA 2.1 V

HuiYuan's 3004R1C-DSA-B is a red circular LED that employs a 3 mm wired design, tailored for efficient optical performance. This semiconductor lighting component emits light with a luminous intensity of 800 millicandelas (mcd) and a viewing angle of 40 degrees. Operating at a forward current of 20 mA and a voltage of 2.1 volts, it is ideally suited for applications such as indicator lamps, signal lights, and other devices requiring single wavelength light. The 3004R1C-DSA-B's compact, efficient design makes it a practical choice for use in electronic systems where space is limited and reliable, consistent lighting is required.

LED Colour	Red
Dominant Wavelength	628nm
Forward Current	20mA
Lens Type	Circular
Luminous Intensity	800mcd
Forward Voltage	2.1V
Viewing Angle	40°
Casing	3mm
Content	1
Max. temperature	80°C
Maximum Temperature	80°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
Product Type	Water clear
Type	THT
