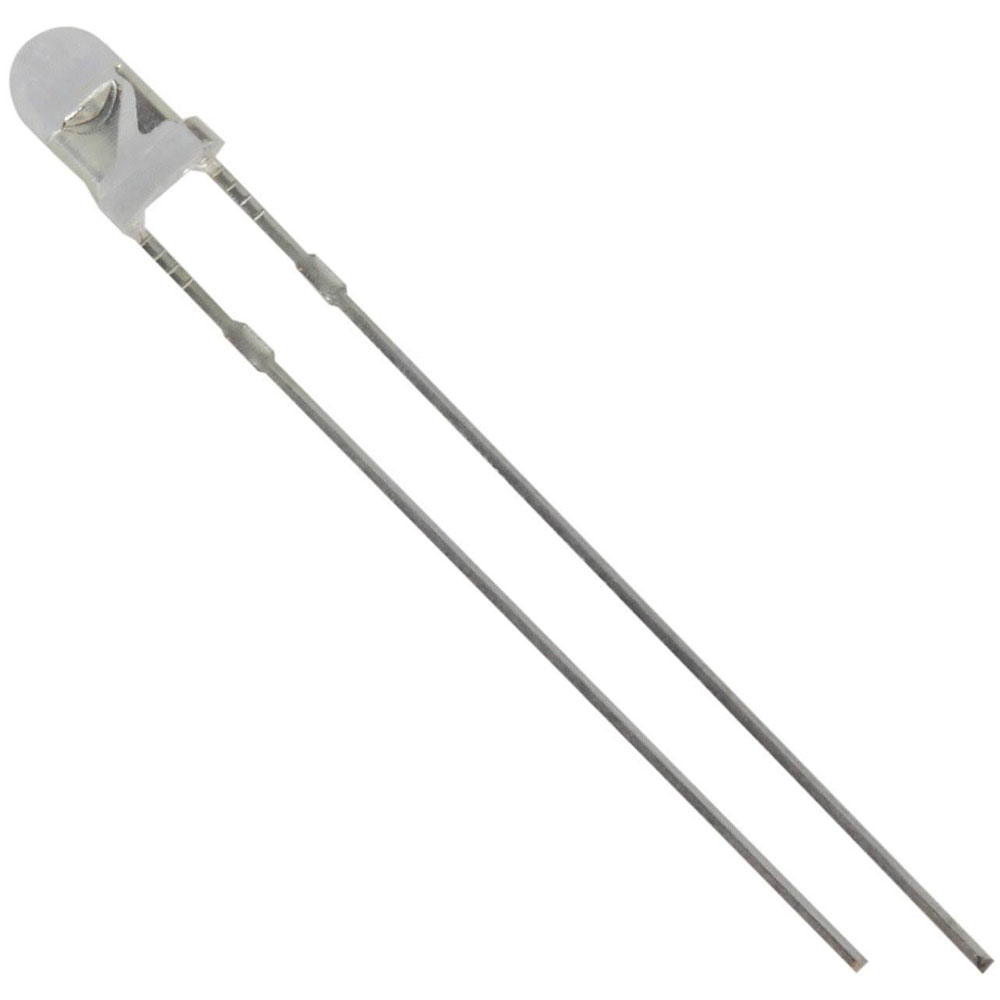

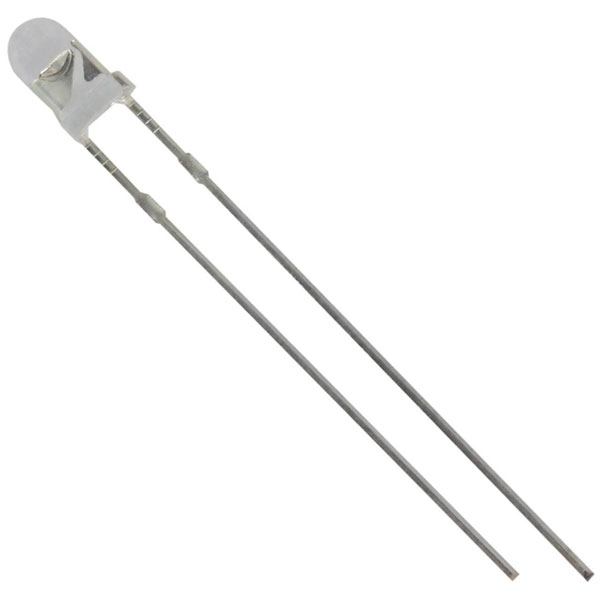

HuiYuan 3004R1C-CSB-B LED wired red circular 3 mm 1800 mcd 25° 20 mA 2.1 V

HuiYuan's 3004R1C-CSB-B is a 3 mm circular red LED notable for its efficient light emission and precise performance characteristics. This component operates at a forward voltage of 2.1 volts and draws a current of 20 milliamperes, producing a luminous intensity of 1800 millicandela with a viewing angle of 25 degrees. As a semiconductor device designed for single wavelength light emission, it is ideal for applications requiring reliable and consistent illumination, such as indicator lights, status displays, and low-power lighting systems. Designed for both wired assembly and seamless integration into electronic circuits, this LED is a robust solution for engineers focused on precise optical performance and durability in a compact form.

Lens Type	Circular
Casing	3 mm
Colour	Red
Content	1
Forward current I(F)	20mA
Forward Voltage U(F)	2.1V
Light intensity I(V)	1800mcd
Maximum Temperature	80°C
Minimum Temperature	-30°C
Product Type	LED wired
Radiation angle	25°
Type	THT
Type (LEDs)	Water clear
Wavelength	628nm
