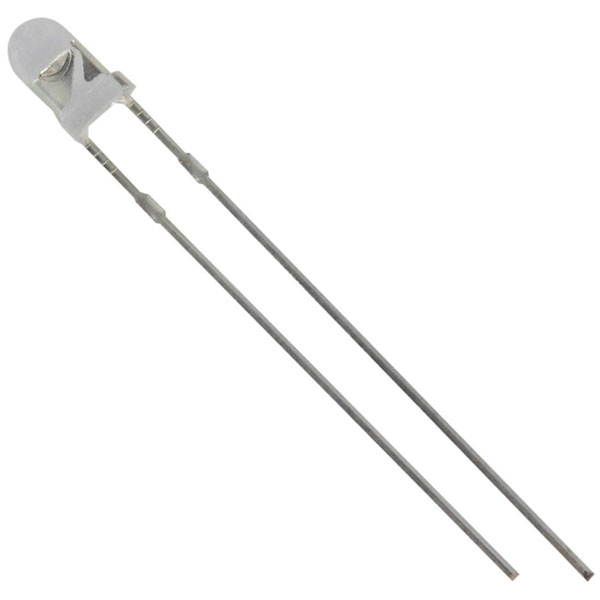

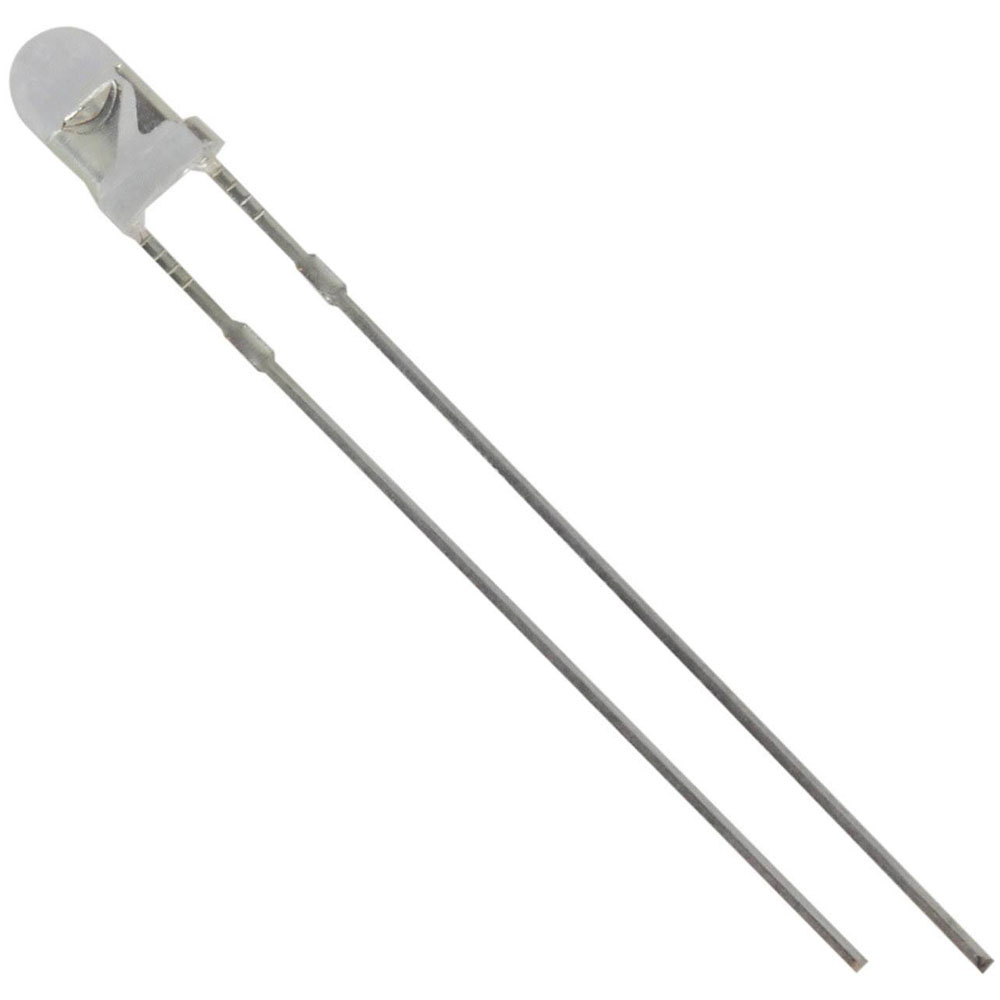

HuiYuan 3004G6C-CSA-S LED Green Circular 3mm 1300mcd 25° 20mA 2.1V

HuiYuan 3004G6C-CSA-S is a high-performance LED characterised by its green circular 3mm form factor, delivering a luminous intensity of 1300 millicandela at a 25-degree viewing angle. Designed to operate at a forward current of 20mA and a typical forward voltage of 2.1V, this component is well-suited for applications requiring precise light emission control in the visible spectrum, predominantly in the green wavelength. As an LED, it is an essential component in semiconductor lighting systems, useful in a range of engineering applications such as indicator lights, display systems, and status signals, where energy-efficient and reliable illumination is required.

LED Colour	Green
Dominant Wavelength	570nm
Forward Current	20mA
Lens Type	Circular
Luminous Intensity	1300mcd
Forward Voltage	2.1V
Viewing Angle	25°
Casing	3mm
Content	1
Max. temperature	80°C
Maximum Temperature	80°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
Product Type	Water clear
Type	THT
