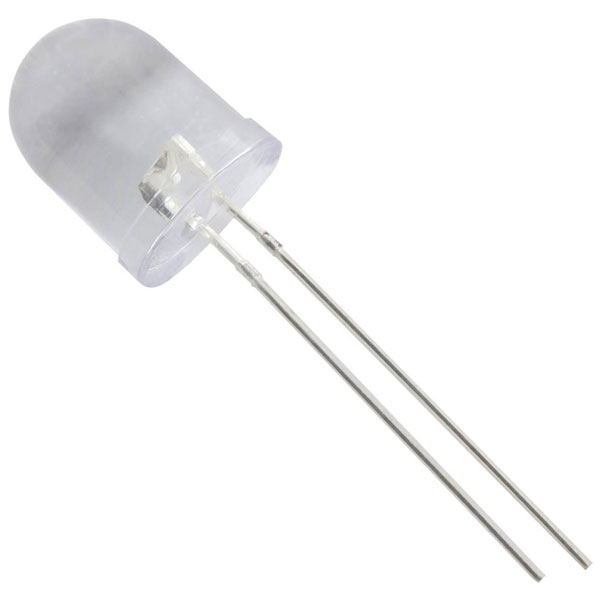

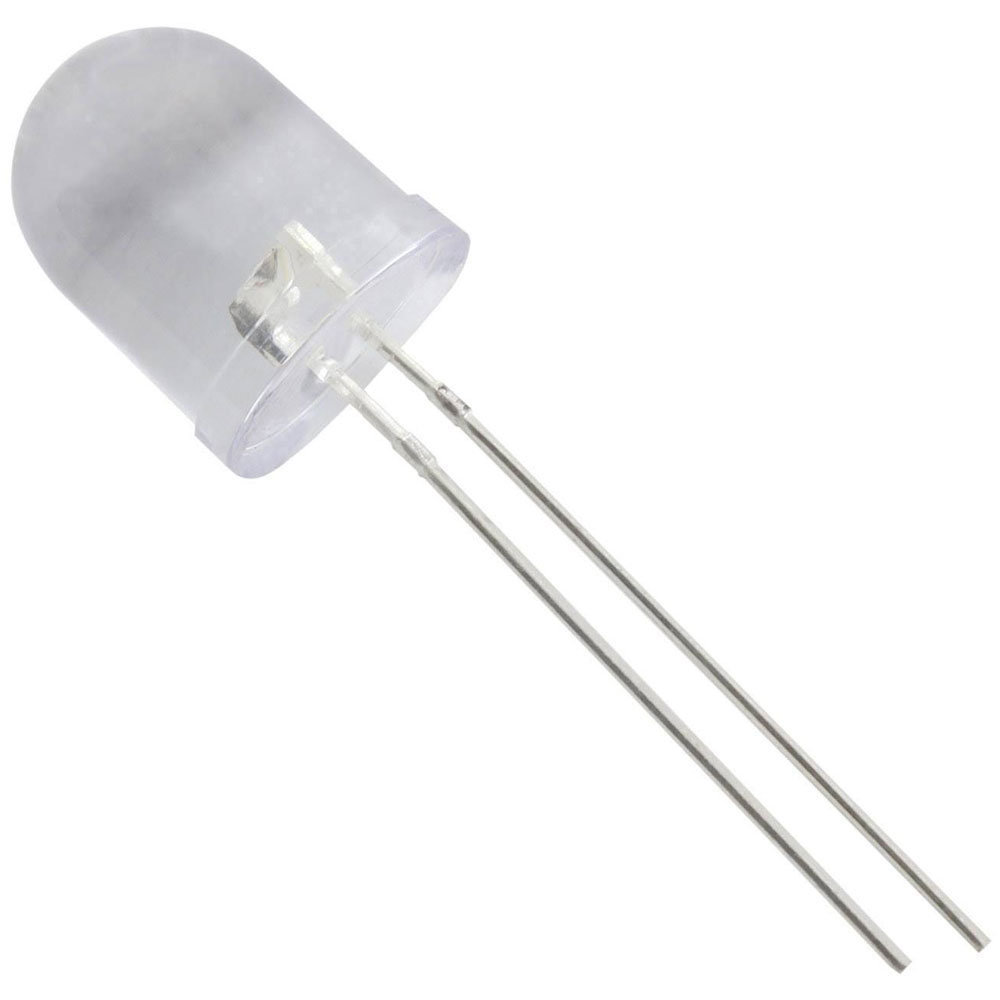

HuiYuan 10003Y1C-CSB-B LED wired circular yellow 10 mm 1800 mcd 25° 20 mA 2.1

HuiYuan 10003Y1C-CSB-B is a high-performance LED component designed for precise illumination applications. This LED features a circular 10 mm design, emitting a vibrant yellow light with an intensity of 1800 millicandelas at a narrow 25-degree viewing angle. Engineered to operate at a forward current of 20 mA with a forward voltage of 2.1 volts, it is ideal for use in applications demanding consistent single-wavelength light emission. Commonly utilised in semiconductor lighting, signal indication, and status displays, this component is valued for its longevity and efficiency in various engineering projects. As a reliable, cost-effective solution, it is particularly well-suited for applications in industrial control panels, consumer electronics, and automotive lighting systems.

LED Colour	Yellow
Dominant Wavelength	588nm
Forward Current	20mA
Lens Type	Circular
Luminous Intensity	1800mcd
Forward Voltage	2.1V
Viewing Angle	25°
Casing	10mm
Content	1
Max. temperature	80°C
Maximum Temperature	80°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
Type	THT
Type (LEDs)	LED wired
