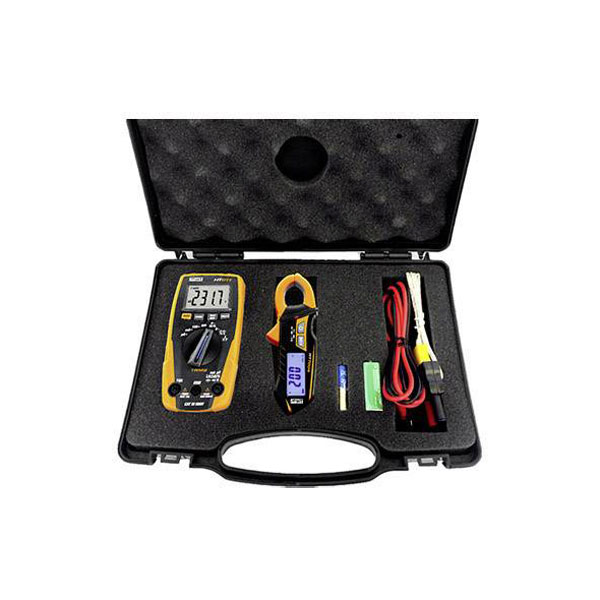

HT Instruments manufactures the e-KIT Handheld Multimeter, which features a digital clamp meter with CAT III 600 V safety rating and a 4000-count display. This versatile device serves as a continuity and voltage tester, suitable for measuring current, voltage, and frequency. It is ideal for electricians and technicians requiring a reliable test device for a variety of electrical measurements.
| Type |
Handheld multimeter |
| A AC reading range (min.) |
0.1µA |
| A DC reading range (max.) |
10A |
| AC resistance |
7.8MΩ |
| Amperage reading range AC (max.) |
300A |
| Amperage reading range DC (min.) |
0.1µA |
| Basic accuracy |
1.2% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dc Resistance |
7.8MΩ |
| Dim |
(L x W x H) 37 x 68 x 138 mm |
| Display |
Digital |
| Display (counts) |
4000 |
| Frequency Range |
50 - 400Hz |
| Frequency reading range |
0.001 Hz -10MHz |
| Height |
138mm |
| Length |
37mm |
| Measurement type (details) |
Average |
| Opening range of current clamps |
27mm |
| Power supply (details) |
9 V battery, lithium button cell (CR2032) |
| Reading category |
CAT III 600 V |
| Reading range - capacity |
0.01 nF -100µF |
| Reading range - resistance |
0.1 Ω - 40 MΩMΩ |
| Temperature reading range (max.) |
+760°C |
| Temperature reading range (min.) |
-20°C |
| V AC reading range (max.) |
600V |
| V AC reading range (min.) |
0.1mV |
| Voltage DC reading range (max.) |
600V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Width |
68mm |
