HT Instruments 1011220 HT3013 Clamp Meter Digital CAT III 600V 400A LCD

HT Instruments
Order Code:

09-4262

Brand: HT Instruments MPN: 1011220 EAN-13: 8052870670670
Qty Unit Price (Ex VAT)
1+ £177.09
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

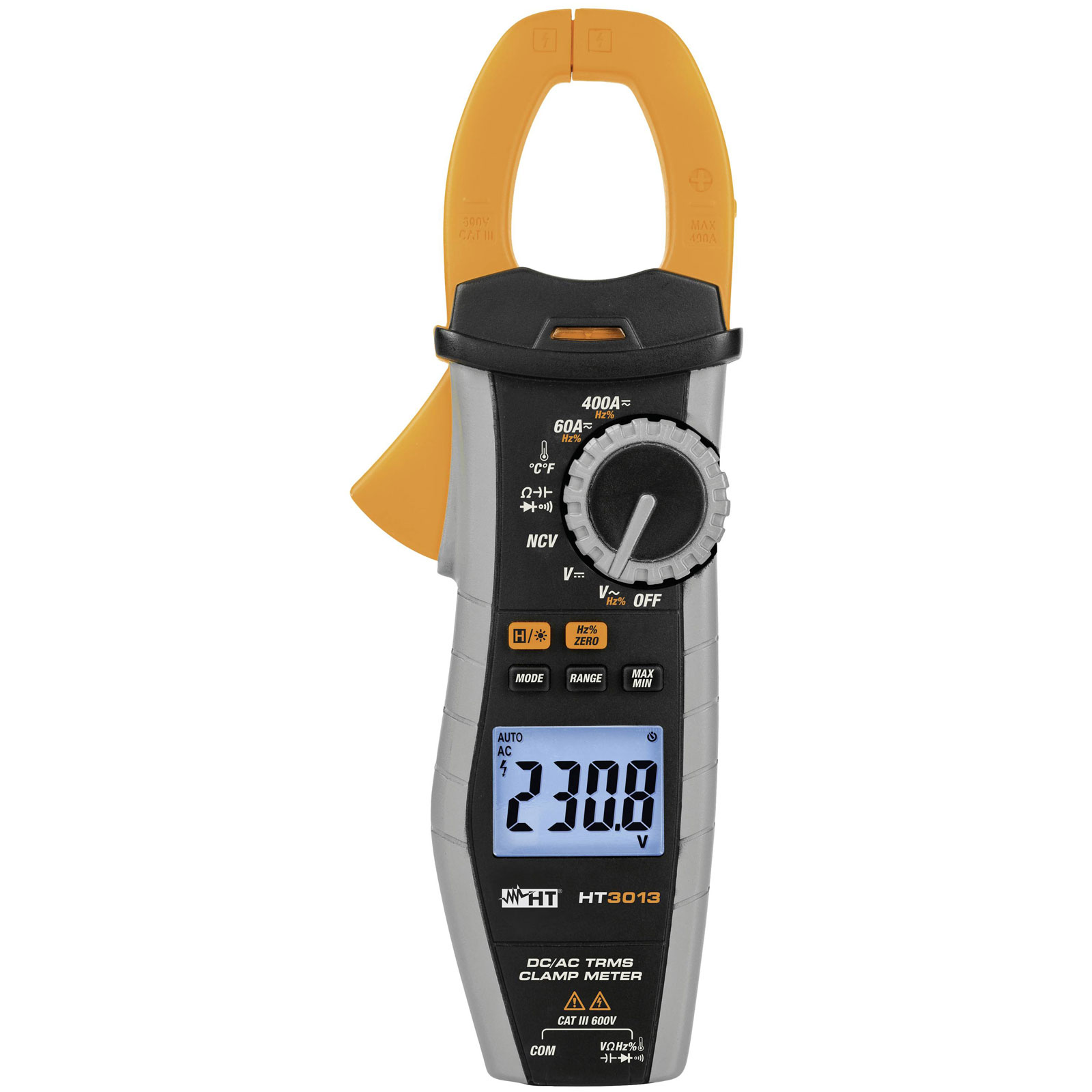

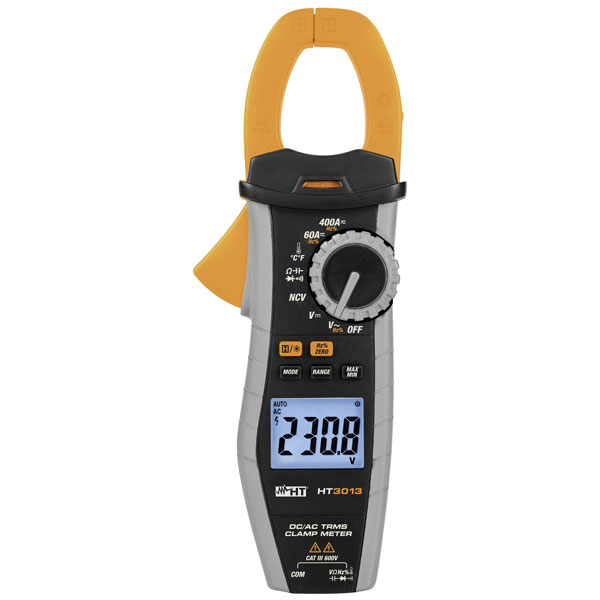

The HT Instruments HT3013 Clamp Meter is a versatile digital multimeter designed for measuring voltage, current, and frequency. With a 6000-count display and CAT III 600 V safety rating, it is perfect for both professional and home electrical testing tasks. As a multi-purpose tester, it serves effectively as an ammeter, voltmeter, and frequency tester.
Type Clamp meter
A AC reading range (min.) 0.01A
A DC reading range (max.) 400A
Amperage reading range AC (max.) 400A
Amperage reading range DC (min.) 0.01A
Calibrated to Manufacturer's standards (no certificate)
Current reading AC/DC
Dim (L x W x H) 220 x 81 x 42 mm
Display Digital
Display (counts) 6000
Frequency reading range 0.01 Hz - 60kHz
Height 42mm
Length 220mm
Misc Attribute HT3013
Opening range of current clamps 30mm
Power supply (details) 1.5V
Reading category CAT III 600 V
Reading range - capacity 0.01 nF - 6mF
Reading range - resistance 0.1 Ω - 60 MΩ
Temperature -50 °C - 760°C
V AC reading range (max.) 600V
V AC reading range (min.) 0.1mV
Voltage DC reading range (max.) 600V
Voltage metering AC/DC
Voltage reading range DC (min.) 0.1mV
Width 81mm
