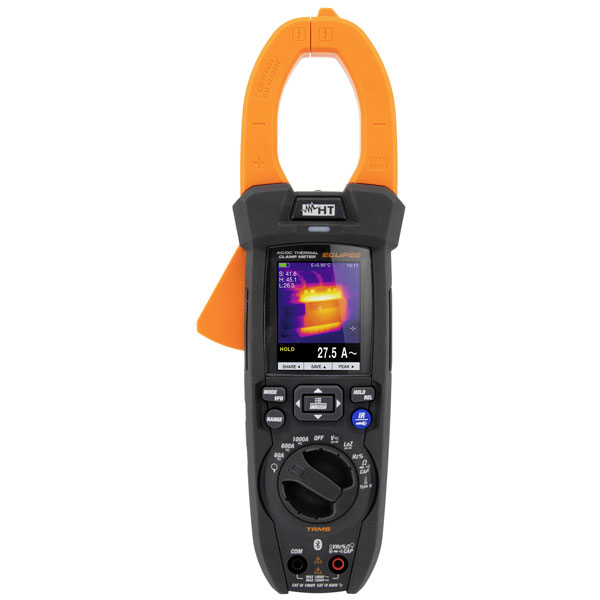

HT Instruments 1009050 ECLIPSE Clamp Meter Digital Thermal Imager 6000C Display

The HT Instruments ECLIPSE clamp meter features a built-in thermal imager and is rated CAT III 1000 V, CAT IV 600 V, and CAT II 1500 V with a 6000-count display. This versatile device functions as a digital multimeter, voltage tester, ammeter, and frequency tester. It is ideal for electricians and professionals needing precise voltage readings and thermal imaging in various electrical installations.

Type	Clamp meter
Maximum DC Current Measurement	1000A
Maximum AC Current Measurement	1000A
A AC reading range (min.)	60A
Amperage reading range DC (min.)	60A
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC/DC
Dimensions	(L x W x H) 280 x 100 x 50 mm
Display	Digital
Display Count	6000
Frequency reading range	60 Hz - 10MHz
Height	50mm
Interfaces	Bluetooth®
Length	280mm
Misc Attribute	ECLIPSE
Opening range of current clamps	40mm
Power supply (details)	7.4V
Reading range - capacity	60 nF - 100mF
Reading range - resistance	600 Ω - 60 MΩ
Temperature	-20°C - 760°C
V AC reading range (min.)	6V
Voltage metering	AC/DC
Voltage reading range DC (min.)	600mV
Weight	505g
Width	100mm
