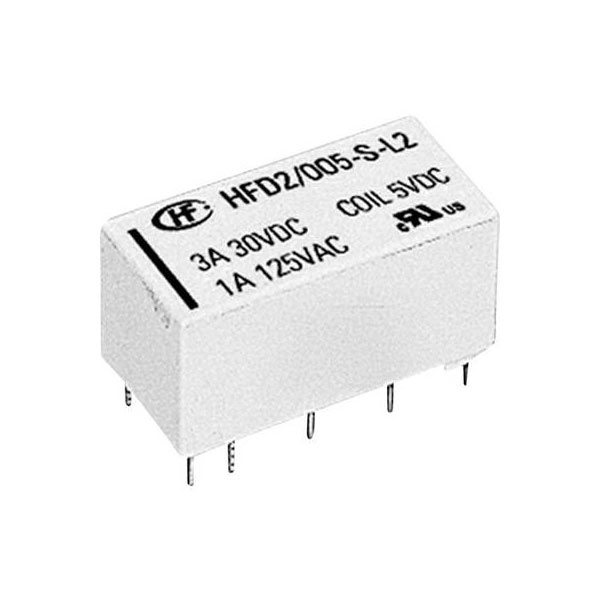

Hongfa HFD2/005-S-L2-D PCB Relay 5V DC 3A 2 Changeovers 1 piece

Image Representative of Range

Hongfa HFD2/005-S-L2-D PCB Relay 5V DC 3A 2 Changeovers 1 piece

Hongfa
Order Code:

09-3991

Brand: Hongfa MPN: HFD2/005-S-L2-D EAN-13: 2050001760814
Qty Unit Price (Ex VAT)
3+ £1.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
100 in stock, despatched same dayBack-order availability date - 08/04/2026

The Hongfa HFD2/005-S-L2-D is a PCB mount relay with a 5 V DC coil and a 3 A switching capacity. It features two change-over contacts, making it suitable for various switching applications. Typical uses include control systems, appliances, and automation equipment.
Coil Voltage 5V DC
Contact Configuration 2CO (DPDT)
Switching Current 3A
Coil Resistance 167Ω
Connection Solder pins
Contact Material Ag-AuAg8
Control Mode Bistable, 2 Coils
Dimensions (L x W x H) 20.2 x 10.2 x 10.6 mm
Height 10.6mm
Length 20.2mm
Max. pick-up Voltage 11.5V DC
Max. temperature +85°C
Min. pick-up Voltage 4V DC
Minimum Temperature -40°C
Mounting Type PCB
Type PCB relay
Width 10.2mm
