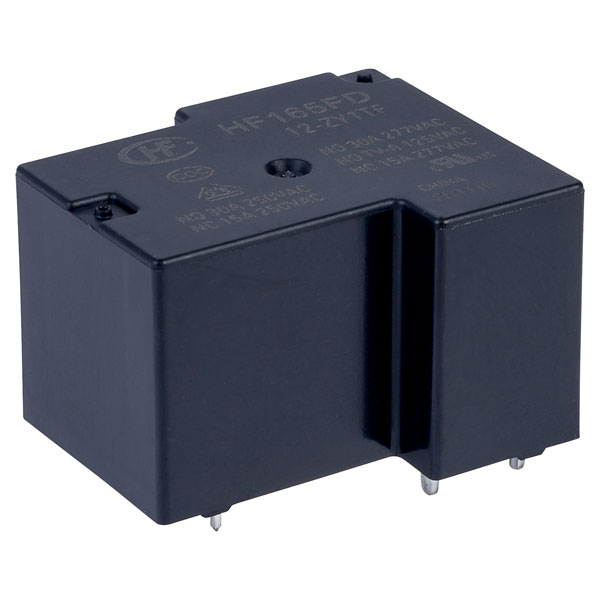

Hongfa HF165FD/12-ZY1TF PCB Relay 12VDC SPDT 30A

Hongfa
Order Code:

71-4674

Brand: Hongfa MPN: HF165FD/12-ZY1TF

Discontinued


A 30A miniature high power relay from the HF165FD series that is designed for PCB mounting. The relay has a 12V DC coil and a SPDT contact configuration.
  • 4kV Dielectric strength
  • Class F insulation
  • Flux proofed
  • 32.2 x 27.5 x 20.4mm
Coil Voltage 12V DC
Contact Configuration 1CO (SPDT)
Switching Current 30A
Coil Resistance 155O
Height 32.2mm
Length 27.5mm
Mounting Type PCB
Operating Temperature -40 to +85°C
Switching Voltage Max 277V AC
Type HF165FD
Width 20.4mm
