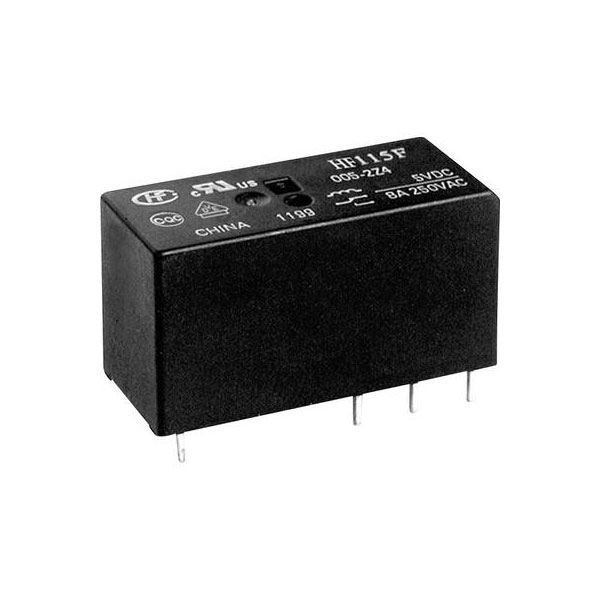

Hongfa HF115F/012-2ZS4A(610) PCB Relay 12V DC 8A 2 Change-Overs GWT-Casing

Image Representative of Range

Hongfa HF115F/012-2ZS4A(610) PCB Relay 12V DC 8A 2 Change-Overs GWT-Casing

Hongfa
Order Code:

09-3983

Brand: Hongfa MPN: HF115F/012-2ZS4A(610) EAN-13: 2050001760944
Qty Unit Price (Ex VAT)
2+ £2.04
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
110 in stock, despatched in 4 working days

The Hongfa HF115F/012-2ZS4A(610) PCB relay operates at 12 V DC with a current rating of 8 A and features two change-over contacts. This mini relay is designed for PCB mounting, ideal for printed circuit board applications. It is commonly used in automotive electronics, industrial controls, and home appliances.
Coil Voltage 12V DC
Contact Configuration 2CO (DPDT)
Switching Current 8A
Coil Resistance 360Ω
Connection Solder pins
Contact Material AgSnO2
Control Mode monostable, 1 coil
Dimensions (L x W x H) 29 x 12.7 x 15.7 mm
Height 15.7mm
Length 29mm
Max. pick-up Voltage 18V DC
Max. switching capacity 2000VA
Max. temperature +85°C
Min. pick-up Voltage 8.4V DC
Minimum Temperature -40°C
Mounting Type PCB
Type PCB relay
Width 12.7mm
