Hongfa HF115F/005-2ZS4A(610) PCB Relay 5V DC 8A 2 Change-Overs 1piece

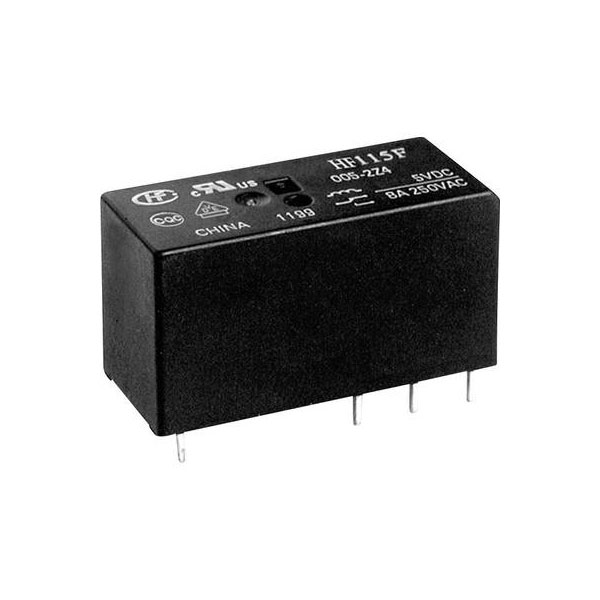

Image Representative of Range

Hongfa HF115F/005-2ZS4A(610) PCB Relay 5V DC 8A 2 Change-Overs 1piece

Hongfa
Order Code:

09-3981

Brand: Hongfa MPN: HF115F/005-2ZS4A(610) EAN-13: 2050001760906
Qty Unit Price (Ex VAT)
2+ £2.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
437 available to back orderBack-order availability date - 10/01/2026

Manufactured by Hongfa, the HF115F/005-2ZS4A(610) is a PCB mount relay operating at 5 V DC with a current rating of 8 A and featuring two change-over contacts. It is typically used in applications requiring reliable switching, such as home appliances and automation systems. The compact design of this relay makes it suitable for printed circuit board installations.
Type PCB relay
Coil Voltage 5V DC
Switching Current 8A
Length 29mm
Width 12.7mm
Height 15.7mm
Connection Solder pins
Contact Material AgSnO2
Contact Type 2 change-overs
Control Mode monostable, 1 coil
Dim (L x W x H) 29 x 12.7 x 15.7 mm
Max. pick-up voltage 7.5V DC
Max. switching capacity 2000VA
Max. temperature +85°C
Min. pick-up voltage 3.5V DC
Min. temperature -40°C
Resistance (coil) 62Ω
