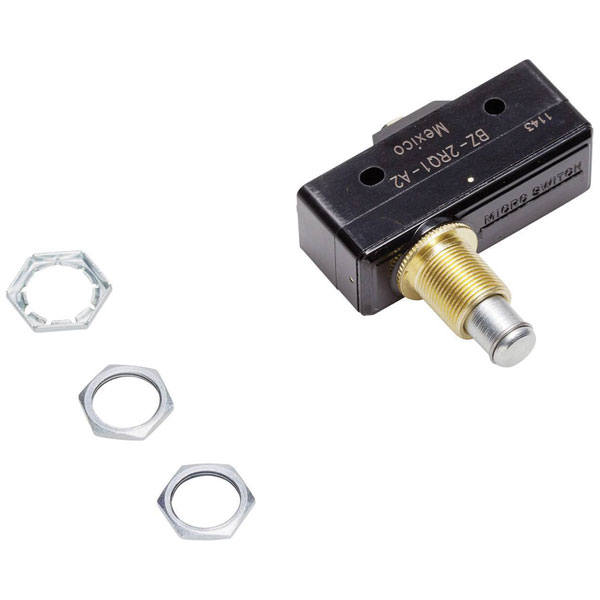

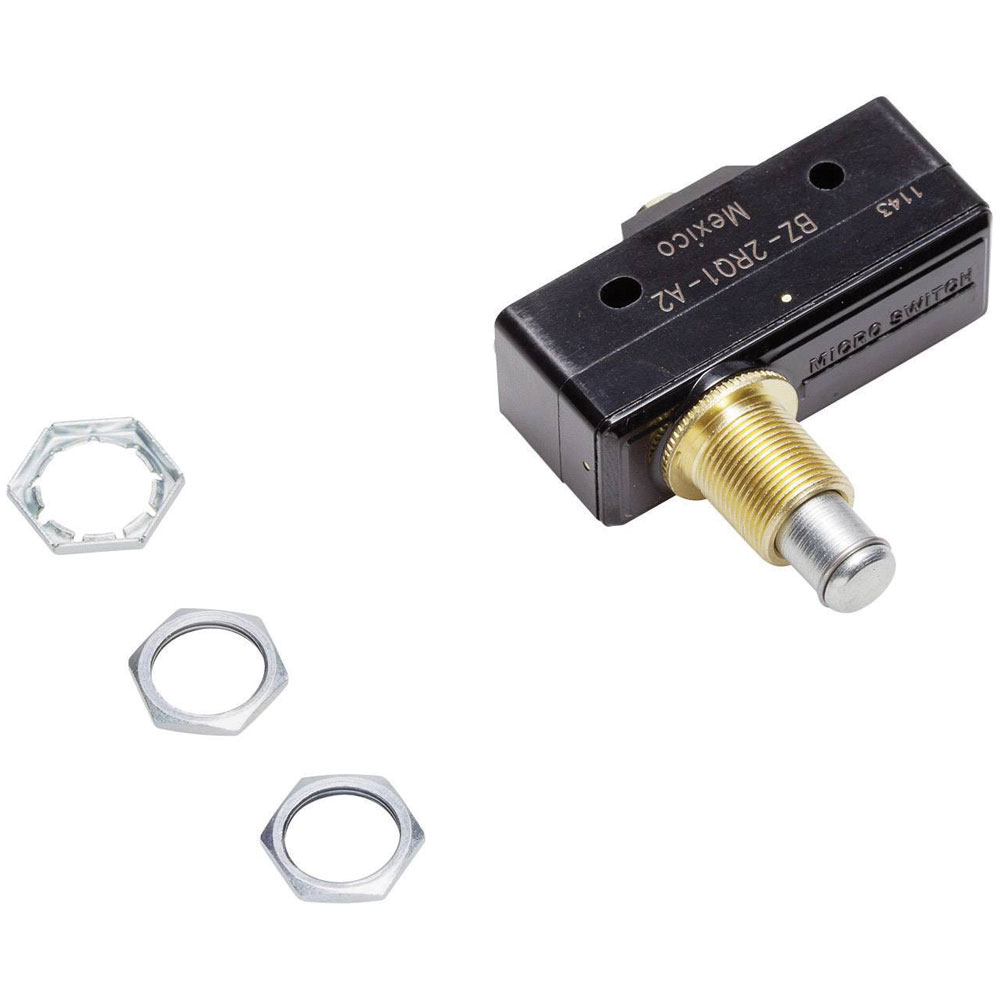

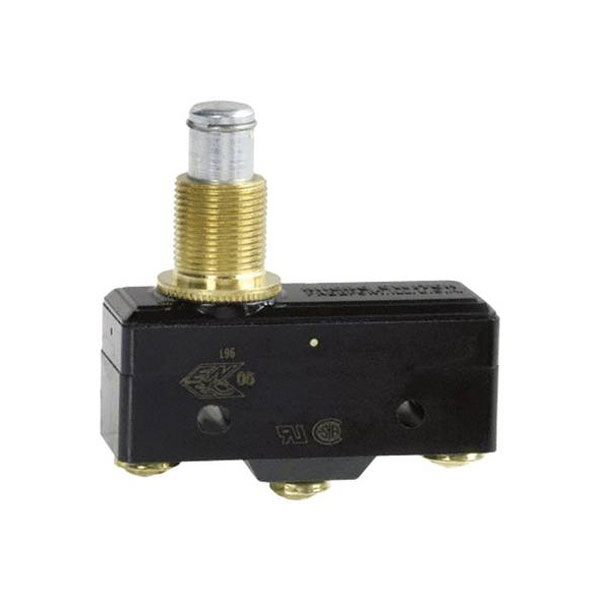

Honeywell BZ-2RW822-A2 Microswitch 125V AC 15A Momentary On/(On)

Manufacturer: Honeywell. The BZ-2RW822-A2 microswitch is a miniature switch that operates at 125 V AC with a current rating of 15 A and features a momentary 1 x On/(On) configuration. It is typically used in applications requiring precise and reliable actuation, such as in industrial machinery or consumer electronics.

Type	Microswitch
Contact Configuration	SPDT
Switch Function	momentary
Current Rating (Amps)	15A
Voltage Rating - AC	125V
Actuating Force	1.67N
Connection	Screws
Contact Material	Silver
Contact Type	1 change-over
Dim	(L x W x H) 49.3 x 17.5 x 29.2 mm
Height	29.2mm
Length	49.3mm
Max. temperature	+85°C
Min. temperature	-55°C
Switch position	1 x On/(On)
Switching Voltage	125V AC
Width	17.5mm
