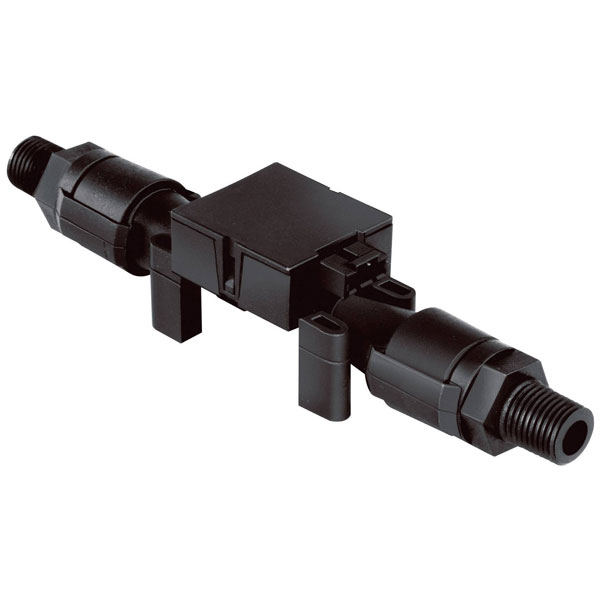

Honeywell AWM5102 VN Mass Airflow Sensor High-Sensitivity Fast Response

The Honeywell AWM5102 VN is a flow sensor designed to measure mass airflow with dimensions of 163x32.3x35.6mm. It is primarily used for monitoring flow levels in various applications, ensuring precise airflow measurement. Typical uses include integration in HVAC systems, automotive engines, and industrial flow control applications.

Accuracy ±	0.5%
Dim	(L x W x H) 163 x 32.3 x 35.6 mm
Height	35.6mm
Length	163mm
Max. ambient temperature	+70°C
Max. operating voltage	15V DC
Min. ambient temperature	-20°C
Min. operating voltage	10V DC
Misc Attribute 1	Air Flow Sensors
Output Voltage	Linear 1 : 5V DC
Pick-up time (details)	60ms
Reading range (max.)	10l/min
Reading range (min.)	0l/min
Response Time	60ms
Temperature Range	-20 - +70°C
Type	Flow sensor
Width	32.3mm
