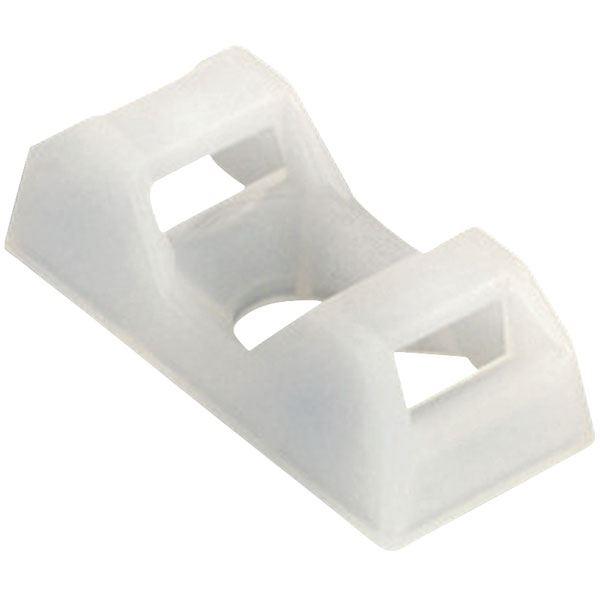

HellermannTyton Mounting Base, CTQM Range

HellermannTyton Brand: HellermannTyton

These HellermannTyton Screwable 2-way Mounting Bases from the CTQM range, provide a safe way for securing cables. The mounts offer a perfect solution in combination with the Q-tie cable ties up to 5mm in width. The mounts keep the inserted cable tie in place during pre-assembly and ensures that the Q-tie does not slip out even in difficult situations, for example vertical mounting positions.

For detailed information on HellermannTyton Q-Ties (see order codes 49-7712 to 49-7770). Please click HERE
  • 2-way mounting base for safe guiding of cables and conduits
  • For cable ties up to 5mm wide
    Uses screw with countersunk head (max. ø of head: 8.0 mm)
  • Perfect for combination with Q-ties
  • Pre-assembly feature
  • Provides a secure hold with Q-ties, particularly in difficult situations such as vertical mounting positions
  • Available in natural or black
Description Image Product Buy Pricing (Ex VAT) Colour Type Dimensions
HellermannTyton 151-10920 CTQM5-PA66-NA-C1 Mounting Base Natural
HellermannTyton 151-10920 CTQM5-PA66-NA-C1 Mounting Base Natural
Standard range
Order code: 49-6765
MPN: 151-10920

Order in multiples of 20


554 in stock, despatched in 4 working days
25+ £0.170
Price per unit Ex VAT 		Natural Cable tie base 21 x 9.5mm
HellermannTyton 151-10930 CTQM5-PA66-BK-C1 Mounting Base Black
HellermannTyton 151-10930 CTQM5-PA66-BK-C1 Mounting Base Black
Standard range
Order code: 49-6766
MPN: 151-10930

Order in multiples of 20


259 in stock, despatched in 4 working days
20+ £0.200
Price per unit Ex VAT 		Black Cable tie base 21 x 9.5mm
Mftrs. Part no.TypeDimensionsFixing hole ØStrap (W)ColourOrder code
151-10920 CTQM5 21(L)x 9.5(W)x6.7(H)mm 4.5mm5.0mmNatural49-6765
151-10930 CTQM5 21(L)x 9.5(W)x6.7(H)mm4.5mm5.0mmBlack49-6766
