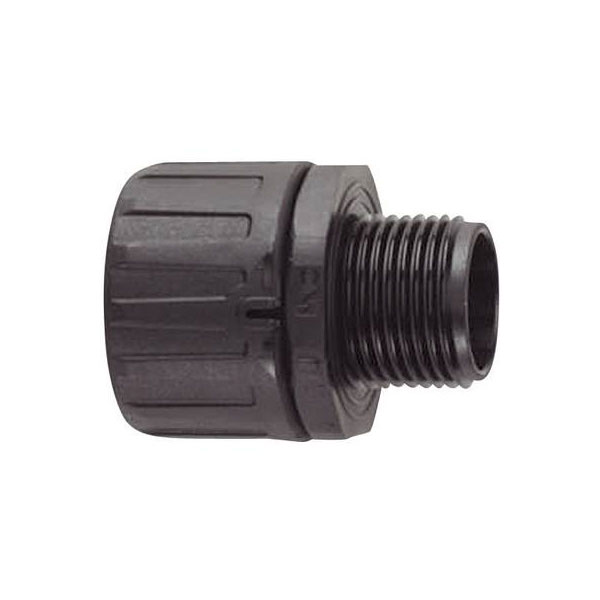

HellermannTyton 166-21020 HG10-S-M16 IP66 Straight Conduit Fitting

The HellermannTyton 166-21020 HG10 is a Straight Conduit Fitting with a fixed External Thread, and comes from the HG-S Series. This fitting has a high pull off strength, and is resistant to solvents and oils. The conduit fitting has been manufactured from Polyamide 6.6 (PA66).

• One piece, fast fit
• High pull-off strength
• Highly resistant to solvents and oils
• Free of halogen, sulphur and phosphorus
• Metric threads supplied with locknuts
• Halogen-free: Yes
• Material: Polyamide 6.6
• Specification: Threaded hose connection
• Operating temperature: -50°C to +135°C
• Fire protection properties: in accordance with UL94 V2
• Nominal diamater: 10mm
• Thread size: M16
• Bore size: 9.5mm
• Supplied in Singularly
• Supplied in Black
• Type: HG-S Range
• Manufacturer's part: 166-21020 HG10-S-M16
