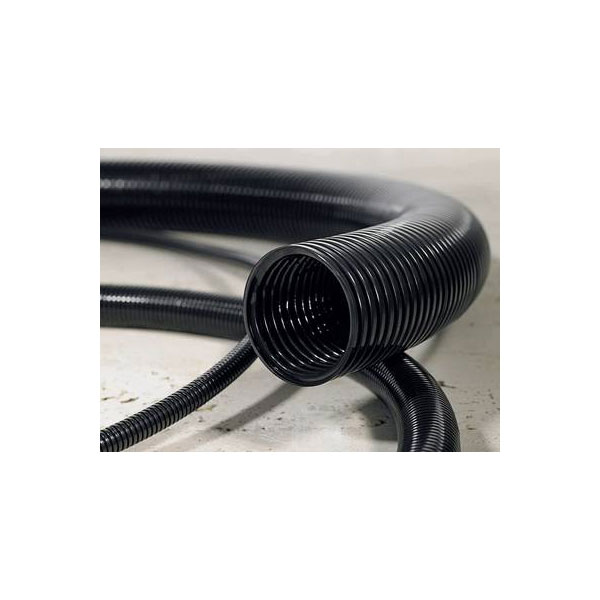

HellermannTyton 166-11402 HG-FR16 PA6 Flame Retardant Conduit 16mm

The HellermannTyton HelaGuard 166-11402 HG-FR16 is a Non-Metallic Conduit from the HG-FR Range. The conduit is highly flame retardant, highly flexible and has a high fatigue life. Ideal for applications in railway vehicles, railway tunnels, underground stations and public buildings, where high fire protection is required.

• Halogen-free: Yes
• Material: Polamid 6 PA6-FR
• Specification: HelaGuard Light
• Operating temperature: -40°C to +120°C
• Flammability: Self extinguishing According to EN 61386
• Nominal diamater: 16mm
• Outside diamater: 5.8mm
• Inside diamater: 11.8mm
• Bending radius: 35mm
• Supplied in lengths of 1m
• Supplied in Black UV Resistant
• Type: HG-LW Range
• Manufacturer's part: 166-11402 HG-FR16 HelaGuard

This conduit will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of conduit will result in a single 7-metre conduit being supplied, not 7 one-metre lengths.

Type	Conduit
Colour	Black
Length	n/a
Material	Polyamide 6
Internal Diameter	16mm
Diameter	16mm
