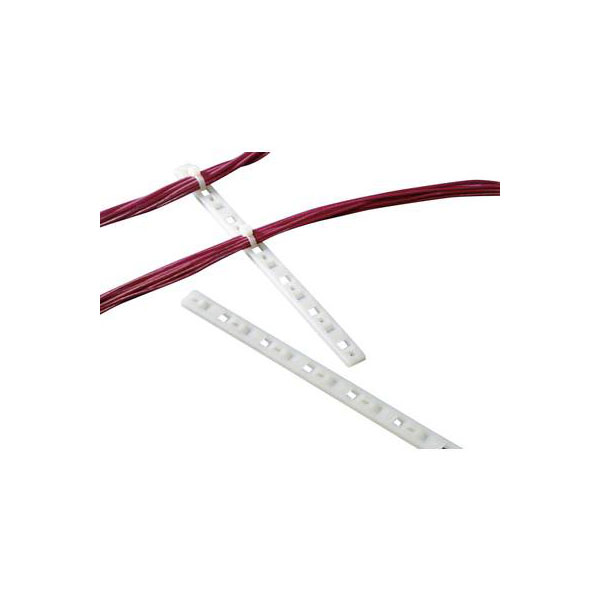

This cable strip from HellermannTyton's MP-Series offers an efficient solution for laying mass cables and wires in parallel. Once the holder has been fixed into position with two or more screws, a cable tie is looped through the desired opening where it secures the cable bundles. The excellent design of the strips means they can be used for maximum efficiency for parallel cable routing in switch cabinet construction, mechanical engineering and military installations.
- Colour: Natural
- Content: 1 piece
- Halogen-free: Yes
- Material: Polyamide 6.6 (PA66)
- Max. cable tie width: 5.2mm
- Flame-retardant according to UL94 V2
- Type: MP4M3
- Operating temperature: -40 to +85°C
- Dimensions: 139.8 x 12.7 x 3.2mm (L x W x H)
- Manufacturer's part 151-24419
| Type |
Mounting socket |
| Material |
Polyamide |
| Colour |
Ecru |
| Max. cable tie width |
5.2mm |
| Maximum Temperature |
+85°C |
| Min. temperature |
-40°C |
