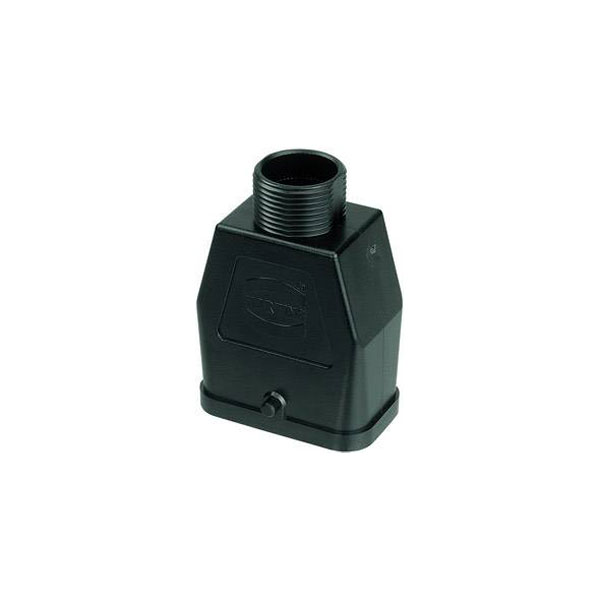

The Harting Bush enclosure 19 12 008 0429 is a high voltage, heavy-duty connector designed for industrial applications. This multicore connector, widely used in electrical engineering, ensures robust and reliable connections. It's ideal for situations demanding industry-grade performance and durability.
| Type |
Bush enclosure |
| Colour |
Black |
| Protection Rating |
IP65 |
| Approvals |
CE |
| Cable Entry |
1x M25 |
| Cable input |
1x M25 |
| Category |
Hoods / Housings |
| Colour (hood/housing) |
RAL 9005 (jet black) |
| Degree of protection acc. to IEC 60529 |
IP65 |
| Description of hood/housing |
for Han-Compact®half cable gland |
| ECHA SCIP number |
60b1a572-bb3f-476f-9307-b7d1688bd90c |
| ELV status |
compliant |
| Field of application |
Hoods/housings for industrial applications |
| Fire protection on railway vehicles |
EN 45545-2 (2020-08) + A1 (2023-10) |
| IP Rating |
IP65 |
| Limiting temperature |
-40 ... +125 °C |
| Locking type |
Single locking lever |
| Material |
Polycarbonate |
| Material (hood/housing) |
Polycarbonate (PC) |
| Material flammability class acc. to UL 94 |
V-0 |
| Maximum Temperature |
+125°C |
| Min. temperature |
-40°C |
| Misc Attribute 1 |
Straight cable input |
| Note on the limiting temperature |
For use as a connector according to IEC 61984. |
| Number of cable entries |
1 |
| REACH ANNEX XIV substances |
Not contained |
| REACH Annex XVII substances |
Not contained |
| Requirement set with Hazard Levels |
R22 (HL 1-3) |
| Series |
Han-Compact® |
| Series of hoods/housings |
Han-Compact® |
| Size |
Han-Compact® |
| Type of hood/housing |
Hood |
| Type rating acc. to UL 50 / UL 50E |
4 |
| UL / CSA |
UL 1977 ECBT2.E235076 |
| Version |
Top entry |
