Harting 09 65 461 6713 D-Sub with Soldering Connection 37 Way

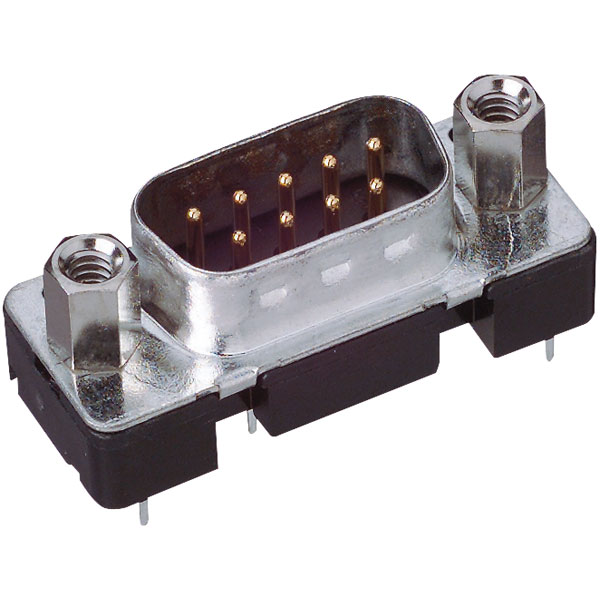

Image Representative of Range

Harting 09 65 461 6713 D-Sub with Soldering Connection 37 Way

Harting
Order Code:

51-9611

Brand: Harting MPN: 09 65 461 6713 EAN-13: 2050000253102

  • Quickly find another product in this range by No. of Ways:

    15 37
Qty Unit Price (Ex VAT)
50+ £9.39
100+ £7.64
250+ £7.58
500+ £7.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 50
10 available to back orderBack-order availability date - 12/04/2026

Harting 37-pin male D-sub connector with grounding board locks, stamped soldering connections and dimples in the metal shell.


  • Number of pins: 37
  • With fitted screw locks 4-40 UNC
  • Standards/test marks: DIN 41652, CECC 75301-802, IEC 60807
  • Temperature range: -55ºC to +125°C
  • Manufacturer's part: 09 65 461 6713
Mounting Type D-sub
No. of Ways 37
Connection Angle 180°
Category Connectors
Clearance distance = 1 mm
Colour (insert) Black
Connection Type Motherboard to daughtercard
Contact Resistance = 10 mO
Contact spacing (termination side) 2.76 mm
Creepage distance = 1 mm
Description of the contact Stamped
Distance between rows 2.84 mm
ECHA SCIP number ecef7555-f643-4ceb-a337-fc54762297f1
Element Connector
Elv status compliant with exemption
Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
Gender Male
Hot plugging No
Identification Standard
Insertion force = 123 N
Installation height ? 6.2 mm
Insulation Resistance >1010O
Isolation group IIIa (175 = CTI < 400)
Limiting temperature -55 ... +125 °C
Locking type Fixing flange with fitted screw lock 4-40 UNC
Material (contacts) Copper alloy
Material (insert) Thermoplastic resin, glass-fibre filled (PBTP)
Material flammability class acc. to UL 94 V-0
Mating cycles = 250
No. of Rows 2
Number of Contacts 37
Orientation Straight
PCB fixing With board locks
PCB thickness =1.6 mm
Rated current ? 6.5 A
REACH ANNEX XIV substances Not contained
REACH Annex XVII substances Not contained
Requirement set with Hazard Levels R26
Series D-Sub
Size D-Sub 4
Specifications DIN 41652
Surface (contacts) Noble metal over Ni
Termination length 3.7 mm
Termination method Wave soldering termination
Test voltage Ur.m.s. 1 kV
Tightening torque =0.4 Nm Locking screw
UL / CSA UL 1977 ECBT2.E102079
Withdrawal force = 11 N
