Hammond 1598CBK Instrument Enclosure FRABS 180x155x52mm Flame Retardant Black

MPN: 1598CBK
Brand: Hammond
GTIN-14: 00623980794686
Order Code: 31-1417
Country of Origin: Canada

RoHS Compliant
Not available for Export
Free UK shipping available

View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£15.32
50+	£10.16

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 1 working day - 50 in stockBack-order availability date - 31/05/2026

Product Details
Product Range
Data Sheets
Quick Quote

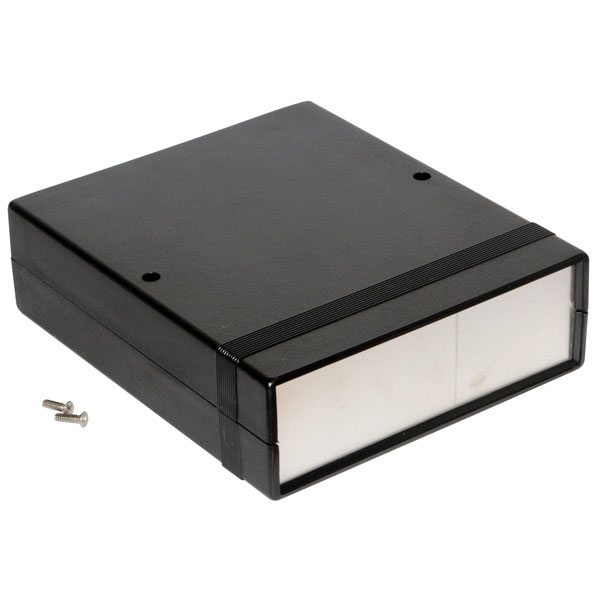

Instrument enclosure from the Hammond 1598 series made from black flame-retardant ABS plastic, ideal for mounting PCBs.

Dimensions 180 x 155 x 52mm
Designed to meet IP54
Two sets of vertical 1.5mm PCB guides moulded into case halves front and rear
Front and rear panels made from 1.6mm brushed aluminium with protective paper on one side
Enclosure halves secured with M3 Phillips machine screws threaded into tapped integral brass bushings
Perfect for use in applications where repetitive assembly and disassembly are required
Integral horizontal PC card mounts on Eurocard centres
Manufacturer's part 1598CBK

Type	Instrument case
Material	ABS
Enclosure Length	180mm
Enclosure Width	155mm
Enclosure Height	52mm
Colour	Black
Protection Rating	IP54
Dimension	180 x 155 x 52mm
Dimensions	180 x 155 x 52mm
External Features	Aluminium end panel
Finish	Matt
Flame Resistance	UL94-V0
Internal Features	PCB mounting
Series	1598
