Hammond 1593YTBU Instrument Case GPABS 140 x 66 x 28mm Translucent Blue

Hammond
Order Code:

30-6362

Brand: Hammond MPN: 1593YTBU GTIN-14: 00623980809786
Qty Unit Price (Ex VAT)
1+ £6.95
50+ £6.68
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 2 working daysBack-order availability date - 07/12/2025

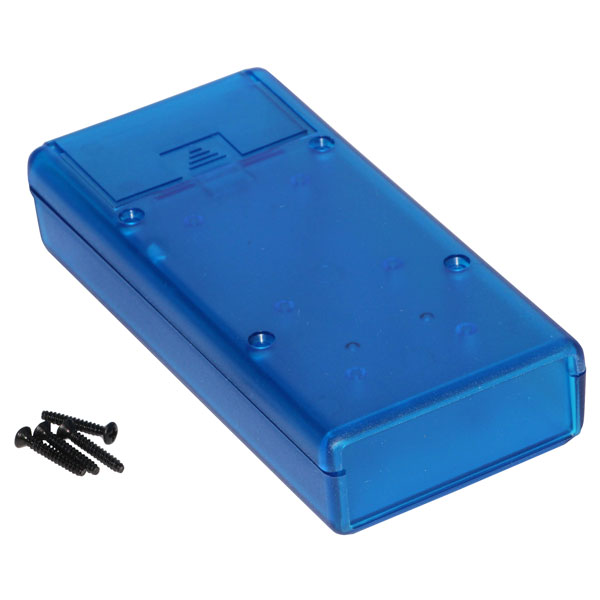

Hand-held blue instrument enclosure from the Hammond 1593 series, 140mm in length, 66mm wide and 28mm high. Ergonomically designed for a comfortable fit into the user's hand, this enclosure has a recessed top for membrane display. The unit is secured with self-tapping screws, and is ideally suited for mounting printed circuit boards.


  • One removable panels and battery compartment
  • Lap joint construction provides protection against dust accumulation and splashing water
  • Made from blue ABS plastic material with UL-94HB flame resistance rating
  • Lid and box both contain moulded in PC board standoffs for easy mounting of boards
  • Designed to meet IP54
  • Hammond part 1593TBU

Hammond enclosure modification


Type Instrument Cases
Material ABS
Enclosure Length 140mm
Enclosure Width 66mm
Enclosure Height 28mm
Colour Translucent blue
Internal Features PCB mounting
External Features Removable end panel / battery compartment
Flame Resistance UL94-HB
IP Rating IP54
Series 1593
