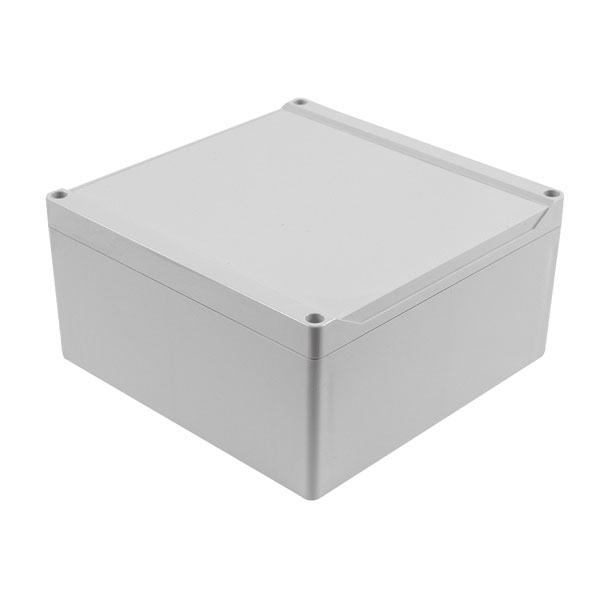

Hammond 1555WAGY Watertight ABS Enclosure Grey, Styled Lid 180 x 180 x 90mm

Extended range
Order Code:

30-3683

Brand: Hammond MPN: 1555WAGY UPC-12: 623980762081
Qty Unit Price (Ex VAT)
1+ £25.91
50+ £23.26
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Out of stockBack-order availability date - 21/01/2025


A watertight grey ABS enclosure with styled lid from Hammond's 1555 series.


  • Dimensions: 180 x 180 x 90mm
  • Ideally suited to mounting printed circuit boards or DIN rail mounted components
  • Moulded from UL94-HB ABS general purpose material
  • Colour: light grey (RAL 7035)
  • Gasketed lid with two piece 'tongue & groove' construction provides protection against access of oil, dust and water
  • Replaceable one-piece gasket made from high temperature, U.L. listed silicone
  • Gasket is supplied loose inside the enclosure (not pre-installed)
  • IP rating: IP66
  • Lid secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushes for repetitive assembly & disassembly
  • All hardware is stainless steel to avoid corrosion caused by dissimilar metals
  • Lid screws are self-captivating (lid holes are threaded with the first installation of lid screws)
  • Internal moulded DIN rail mounting tabs
  • Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting
  • Vertical P.C. card guides (for 1.5mm thick P.C. boards)
  • Hammond type 1555WAGY

Hammond enclosure modification


Colour Light grey, RAL 7035
Enclosure Height 90mm
Enclosure Length 180mm
Enclosure Width 180mm
External Features Styled lid
Protection Rating IP66
Internal Features DIN rail, slots, pillars
Material ABS
