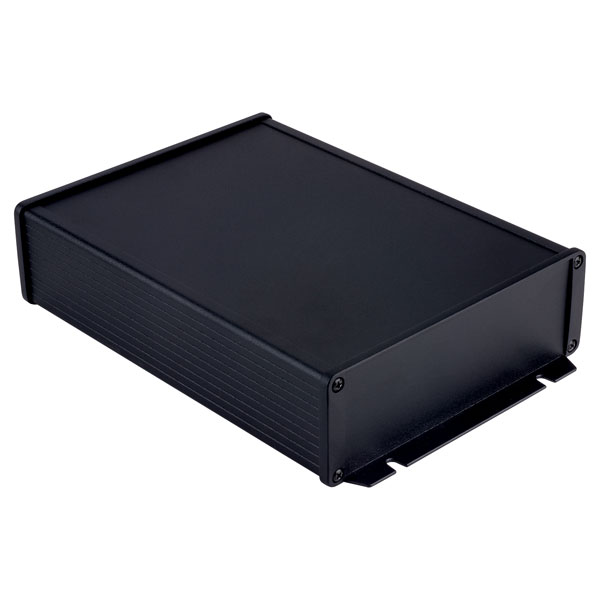

A heavy-duty, watertight, extruded aluminium enclosure from Hammond Manufacturing's 1457 series.
The enclosure is designed to house standard Eurocards, which mount horizontally by sliding into internal slots extruded into the enclosure body.
- Dimensions: (Extrusion length x Width x Height): 220 x 165 x 55mm
- Extrusion colour: black
- End panel colour: black
- End panel style: flanged
- Rugged body constructed from one piece, extruded aluminium with a minimum thickness of 1.5 mm
- Extruded aluminium body includes a recessed area for labels or membrane keypad
- End panels are rugged - yet easy to machine - die-cast aluminium with full perimeter self-adhesive gaskets
- Designed to meet IP65
- Enclosure includes:
- Two die-cast aluminium end panels - painted in a durable, black satin powder paint
- Extruded, aluminium body
- Two closed cell polyethylene foam end-plate gaskets & rubber 'O' rings for assembly screws
- All hardware and self-adhesive feet
- Replacement assembly screws can be purchased in packs of 100, part number 1457MS100
- Note: Recommended screw torque is 5 lbf/in
- Hammond Manufacturing type 1457T2202BK
| Colour |
Black |
| Enclosure Height |
55mm |
| Enclosure Length |
220mm |
| Enclosure Width |
165mm |
| External Features |
Recessed area for labels or keypads |
| Internal Features |
PCB mounting |
| Material |
Aluminium |
| Finish |
Anodised |
| IP Rating |
IP65 |
| Series |
1457 |
| Type |
General purpose extruded aluminium |
