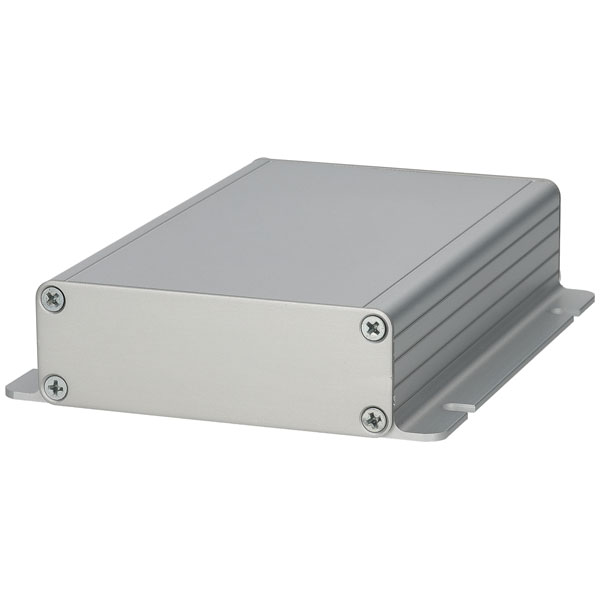

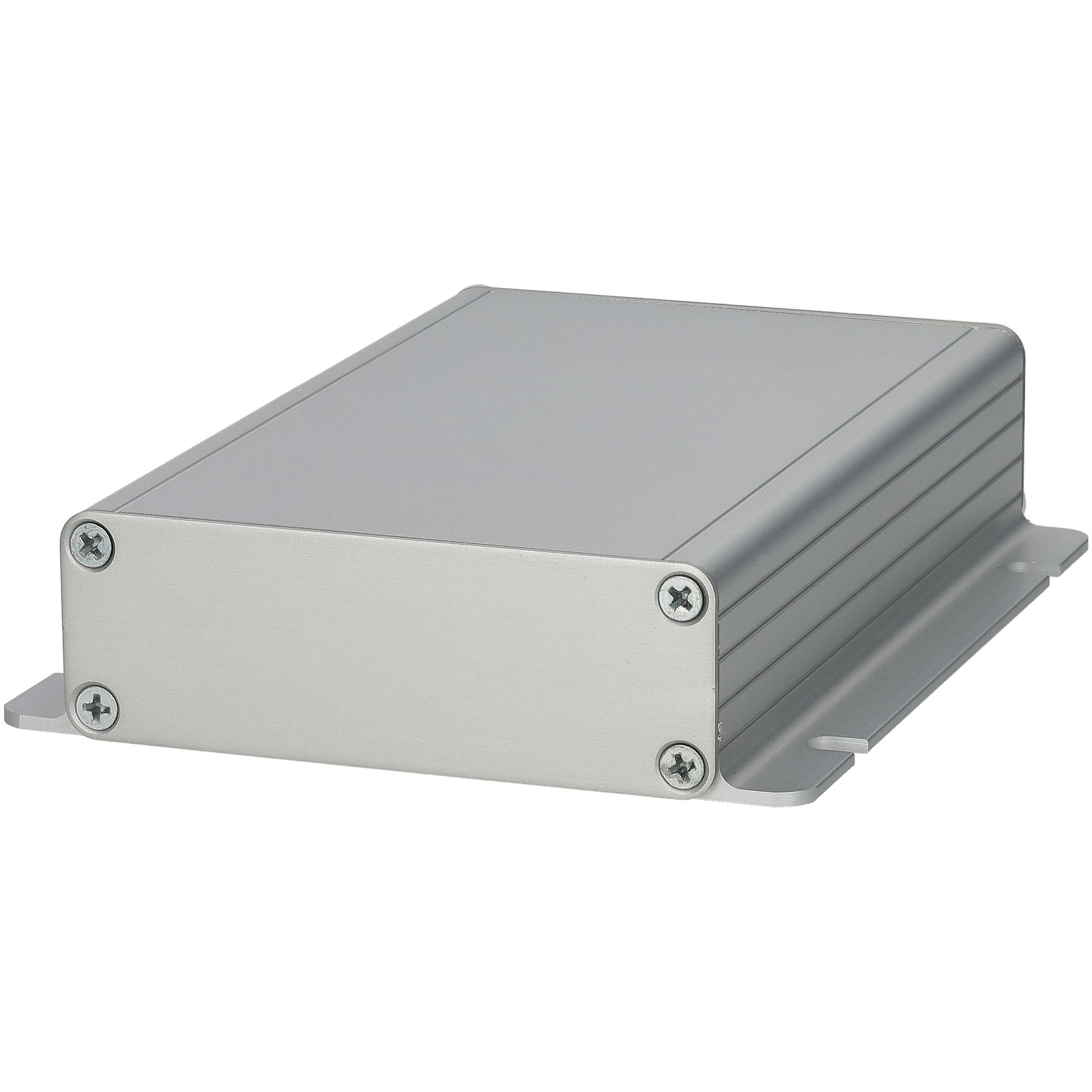

Hammond 1455JF1201 Extruded Enclosure Side Mounting 120X78X27 Clear Anodise

Hammond 1455JF1201 Extruded Enclosure Side Mounting 120X78X27 Clear Anodise - Designed to house P.C. boards or for equipment interfacing. Integrated slotted flanges allow for easy wall mounting. Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look.

Sized for 50mm wide PC boards. P.C. boards mount into extrusions by sliding into internal slots extruded into the enclosure
body.

• Extruded aluminum body - choice of clear or black anodized
• (2) Aluminum end panels
• All hardware - end panel screws are #6 x 3/8" TTT - thread rolling, steel screws with a #4 flat head phillips drive.
• Zinc plate finish - either clear or black
• Replacement end panels available in packs of 10 (see table below)
• For black replacement screws (quantity 100) order part number 1455MS100BK
• For clear replacement screws (quantity 100) order part number 1455MS100
• NOTE: Recommended screw torque is 5 lbf-in
