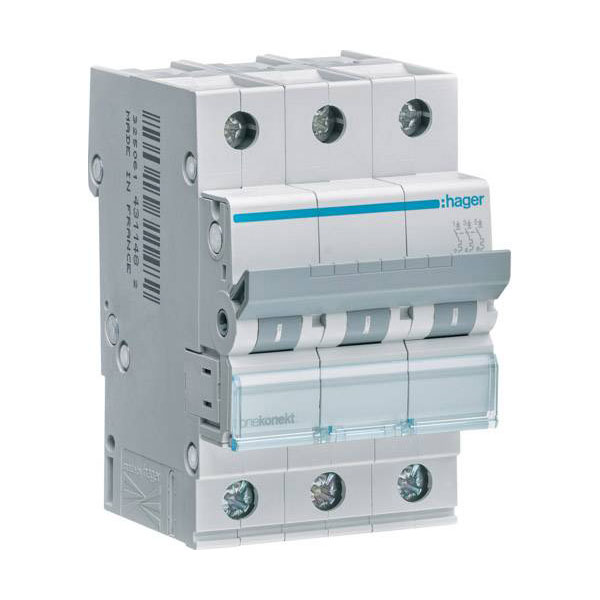

Hager MCN320 Circuit Breaker 3-Phase 20A Overload & Short-Circuit Protection

Hager
Order Code:

03-8333

Brand: Hager MPN: MCN320 EAN-13: 3250614311468
Qty Unit Price (Ex VAT)
1+ £60.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Hager MCN320 circuit breaker is a 3-phase device with a 20 A rating. Manufactured by Hager, it features robust protection mechanisms for electrical circuits. Typically used in industrial and commercial applications, it ensures safety and reliability.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -25 - 70°C
Built-in depth 70mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 25mm²
Connectable conductor cross section solid-core 1 - 35mm²
Current limiting class 3
Current Ratng 20A
Degree of protection (IP) IP20
Explosion-proof false
Factory colour Grey
Flush-mounted installation true
Frequency 50 - 60Hz
Model 3-phase
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 3
Pollution degree 2
Power loss 8.90W
Rated current 20A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 10kA
Rated voltage 400V
Release characteristic C
Release characteristics C
Switch-off capacity 6kA
Voltage Rating 230 - 400V
Voltage type AC
Width in number of modular spacings 3
