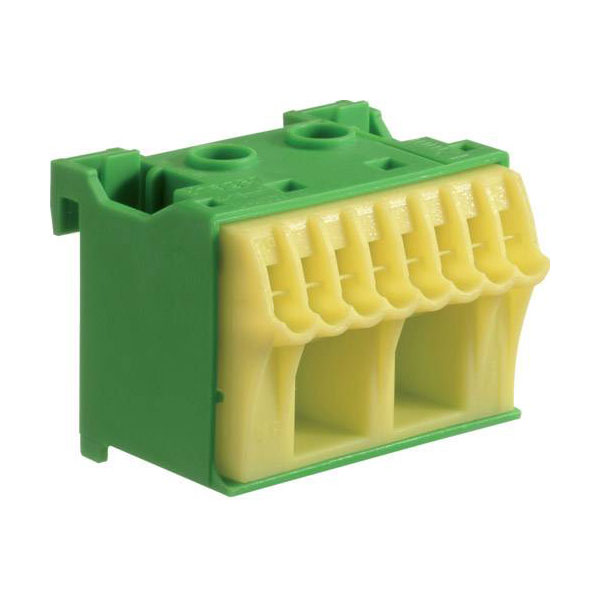

Hager KN10E Terminal Block 63A Quick Connect 10 Clamping Points

Hager's KN10E terminal block is rated for 63 A and comes in a single unit. It is designed for secure electrical connections and distribution in various electrical installations. Typical applications include use in industrial or residential electrical panels.

Type	Terminal block
Colour	Multi-coloured
AWG-range	N/A
Cable Diameter	N/A
Conductor cross section flexible (fine-strand) with cable end sleeve	1.5 - 25mm²
Conductor cross section solid (solid, stranded)	1.5 - 25mm²
Current Rating	63A
Depth	34mm
Dimensions	(W x H x D) 45 x 33 x 34 mm
Height	33mm
Length	45mm
Nominal cross section	N/A
Nominal Current	63A
Nominal current - rounded value	63A
Nominal Voltage	230V
Number of clamp positions	10
Suitable for flexible conductors	true
Suitable for multi-wire conductors	true
Suitable for solid conductors	true
Transparent	N/A
Weight	0.04
With operation lever	N/A
