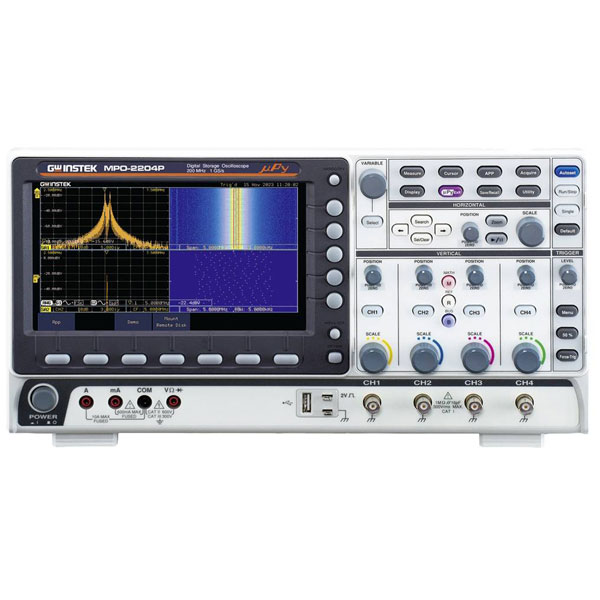

GW Instek MPO-2000 Oscilloscope 200MHz 4-Ch 1GS/s 8 Bit

The name of the MPO-2000 series is the abbreviation for Multi-function Programmable Oscilloscope. Apart from an oscilloscope, it also includes a spectrum analyser, an arbitrary wave form generator, a digital multimeter and a DC power supply. In addition to the multifunctional five-function architecture, we have innovatively introduced the Python script function into the MPO-2000, allowing users to perform program control of a small automated test system by setting up a single device test or a multitest without a PC, hence the name MPO.

Bandwidth	200MHz
Type	Digital
Calibrated to	Manufacturer's standards (no certificate)
Channel sample rate	1GS/s
Dim	(L x W x H) 127.30 x 384 x 208 mm
Display	800 x 480 p
Displays	TFT LCD 8"
Height	208mm
Input coupling	AC/DC/GND
Input Impedance	1 MΩ
Length	127.30mm
Misc Attribute	MPO-2204P
Reading category	CAT I
Resolution	8Bit
Screen Size	20.32cm
Time base	1.75 ns
Vertical deflection	1 mV/div to 20 mV/div
Weight	3kg
Width	384mm
