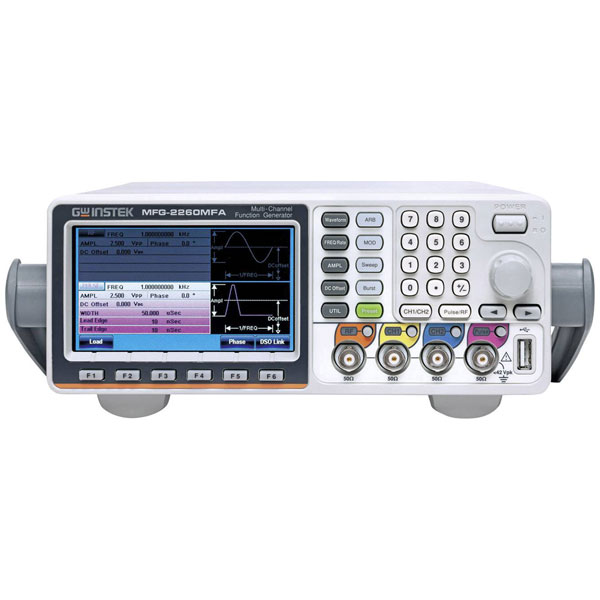

GW Instek MFG-2260MFA 60MHz 2-Ch Function Generator Mains

MFG-2000 series, which has up to 5 simultaneous output channels (MFG-2260MFA/MFG-2260MRA), including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels; RF signal generator, a standard AFG, which produces the maximum 320MHz sine wave and various modulation RF signals; pulse generator, whose frequency reaches 25MHz; power amplifier, which is ideal for audio range. The above-mentioned five different functionality channels are separately or totally allocated on 10 models, which extend from the basic single-channel AFG with pulse generator models to five-channel models so as to satisfy various educational and industrial applications.

Type	Mains-powered
Frequency Range	1 µHz - 60 MHz
Number of Channels	2-channel
Calibrated to	Manufacturer's standards (no certificate)
Dim	(W x H) 266 mm x 107 mm
Display	Digital
Distortion factor (sine)	0.1%
Frequency reading (external)	5 Hz - 150 MHz
Height	107mm
Interfaces	USB
Internal modulation	AM, FM, PM, PWM, FSK, ASK, PSK, SUM
Max. frequency	60MHz
Min. frequency	1 µHz
Misc Attribute	MFG-2260MFA
Square wave slew rate	15ns
Voltage Supply	Mains
Width	266mm
