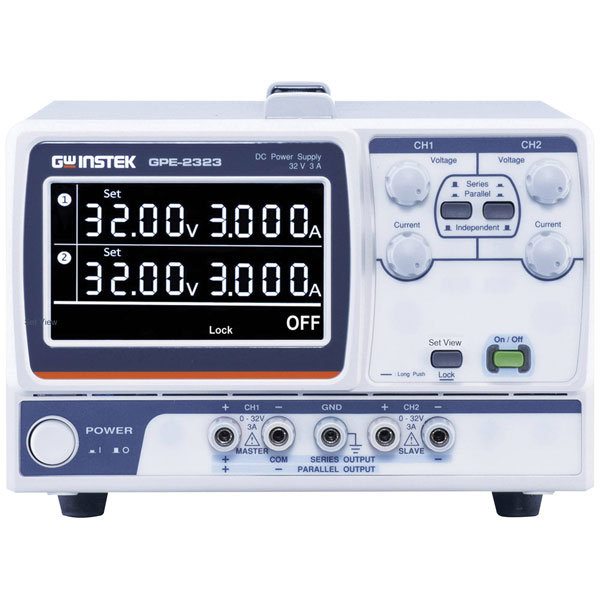

GW Instek GPE-2323 Bench PSU Adjustable 0-32V 0-3A 192W 2 Outputs

The gpe-X323 series offers output power of 192 to 217 watts, three independent isolated output channels (GPE-X323), high resolution, low noise, high reliability, key-lock function and compact dimensions. The gpe-X323 Series has another new paradigm for GW Instek in the manufacture of linear DC power supplies.

Type	Bench PSU (adjustable voltage)
Output Current	192W
Output Voltage	32V
Number of Outputs	2
Input Voltage	230V AC
Calibrated to	Manufacturer's standards (no certificate)
Dimensions	(L x W x H) 306 x 210 x 155 mm
Height	155mm
Length	306mm
Max. output current	3A
Maximum Temperature	40°C
Min. temperature	0°C
Misc Attribute 1	GPE-2323
Misc Attribute 2	Desktop
Misc Attribute 3	Linear
Output current (min.)	0A
Output current 2 (max.)	3A
Output current 2 (min.)	0A
Output voltage (min.)	0V
Output voltage 2 (max.)	32V
Output voltage 2 (min.)	0V
Residual ripple	1 mVrms
Technology	Linear regulated PSU
Weight	7kg
Width	210mm
