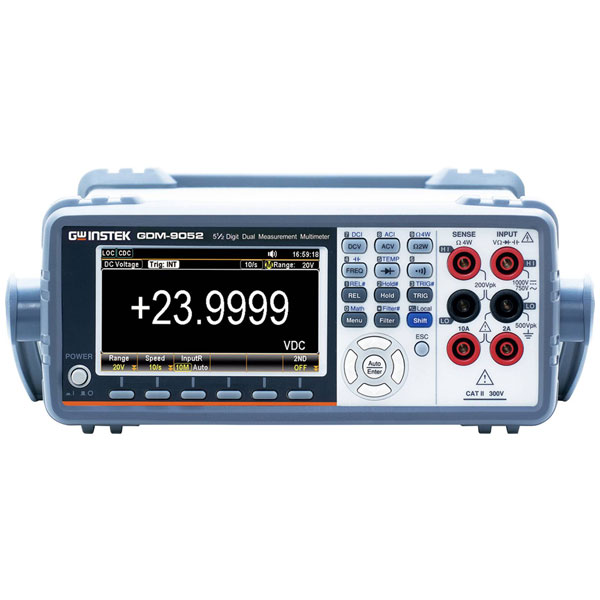

GW Instek 01DM905200GS, also known as 3436305 - GW Instek 01DM905200GS, is a precision tester featuring a digital display with a 239,999 count, designed for high-accuracy measurements in various electrical engineering contexts. This product is engineered for precision testing, making it indispensable in environments requiring exact data acquisition, such as laboratory research, electronic testing, and quality control in manufacturing processes. It supports multiple measurement functions and offers a high-resolution readout, which aids engineers and technicians in performing detailed analysis and diagnostics on complex electronic components and systems. With its robust construction and reliable performance, the GDM-9052 model is suited for both development and troubleshooting tasks where precision and accuracy are paramount.
| Type |
Precision tester |
| A AC reading range (min.) |
20.000mA |
| A DC reading range (max.) |
10.0000A |
| Amperage reading range AC (max.) |
10.000A |
| Amperage reading range DC (min.) |
20.0000mA |
| Dimensions |
(L x W x H) 302 x 268 x 107 mm |
| Display |
Digital |
| Display (counts) |
239.999 |
| Height |
107mm |
| Interfaces |
RS232C |
| Length |
302mm |
| Measurement type (details) |
True RMS |
| Radiant flux |
30 |
| Reading range - capacity |
100.0µF |
| Reading range - resistance |
100 000MΩ |
| Temperature reading range (max.) |
+300°C |
| Temperature reading range (min.) |
-200°C |
| V AC reading range (max.) |
750.00kV |
| V AC reading range (min.) |
200.000mV |
| Voltage DC reading range (max.) |
1000.00V |
| Voltage reading range DC (min.) |
200.000mV |
| Width |
268mm |
